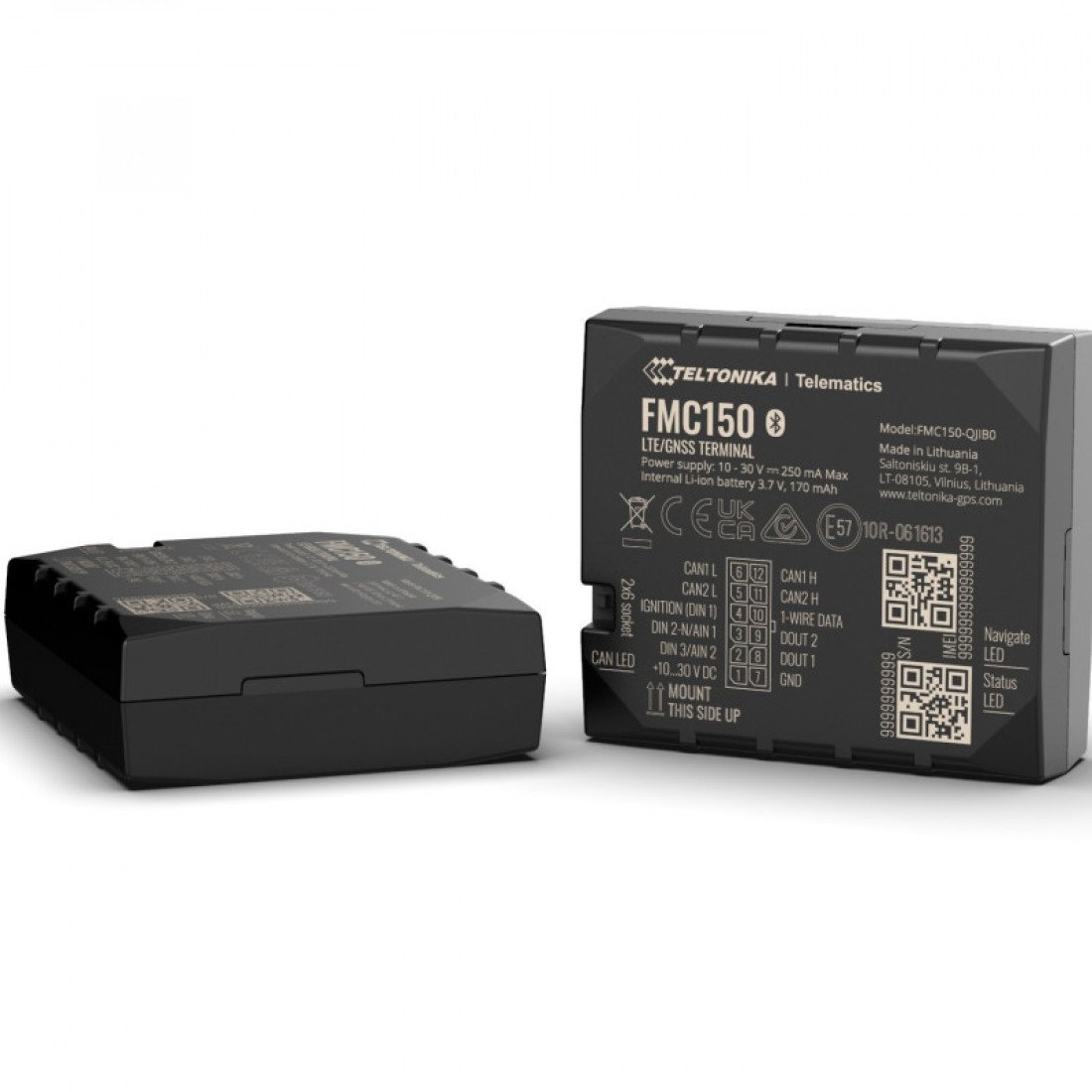

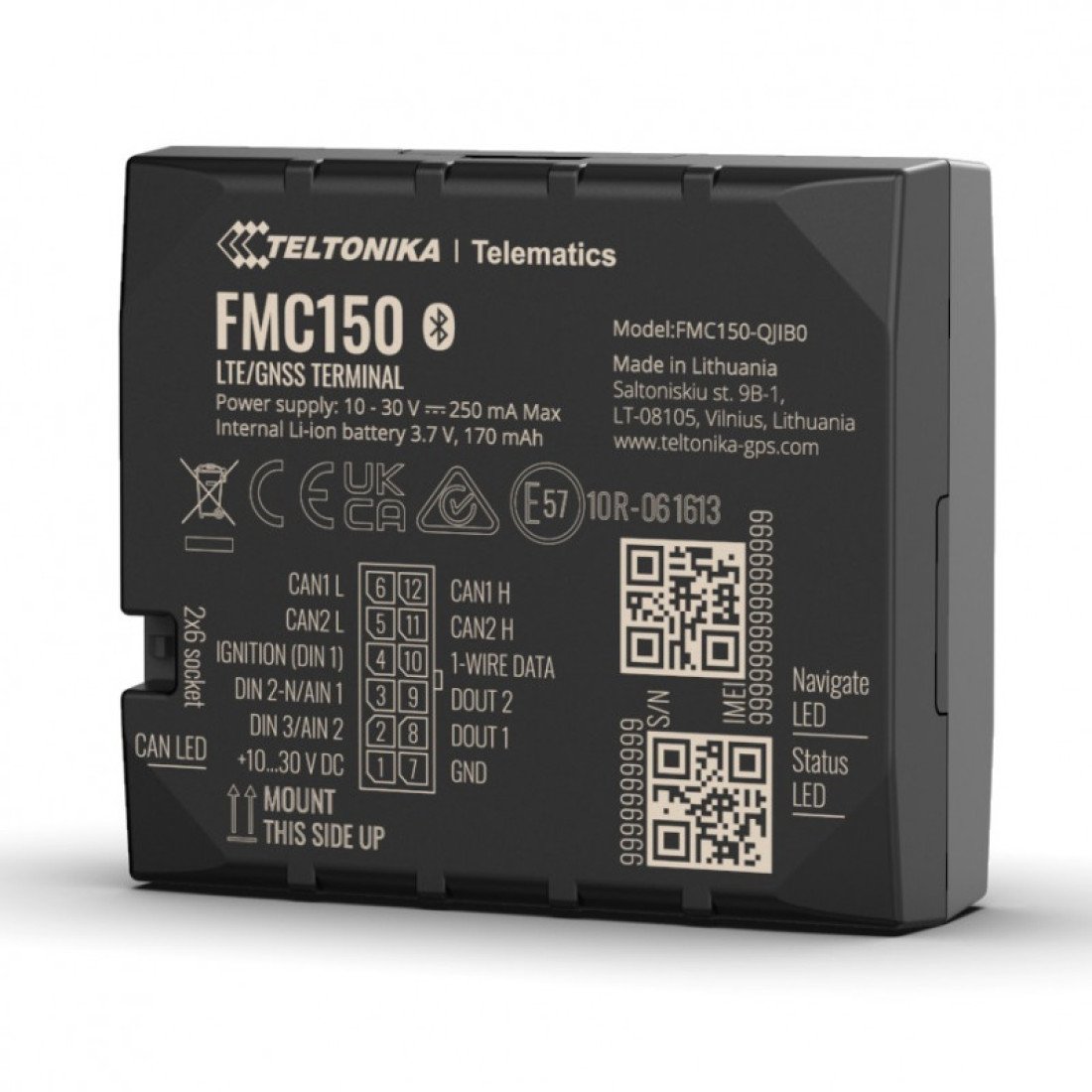

4G GPS tracker Teltonika FMC150 Extended with extended CAN

Technical specifications

• Interface
  Digital Inputs: FMC150-QJIB0: 3
• Digital Outputs
  FMC150-QJIB0: 2
• Negative inputs
  FMC150-QJIB0: 1 (digital input 2)
• Analog Inputs
  FMC150-QJIB0: 2
• Pulse inputs
  FMC150-QJIB0: 2 (Digital Input 1, Digital Input 2)
• 1-Wire
  1
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• USB
  2.0 Micro-USB
• CAN interfaces
  2
• LED indication
  3
• SIM
  Micro-SIM or eSIM
• Memory
  Internal Flash Memory 128MB
• Weight
  55
• Height
  20.6
• Length
  65
• Power supply
  Input voltage range: 10-30VDC with overvoltage and reverse polarity protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Dimensions
  65 x 56.6 x 20.6 mm
• Operating conditions / Housing
  Operating temperature (without battery): -40 to +85 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP41
• Battery charge temperature
  from 0 to +45 °С
• Battery discharge temperature
  from -20 to +60 °С
• Power
  At 12V < 6mA (Ultra Deep Sleep); At 12V < 8mA (Deep Sleep); At 12V < 11mA (Online Deep Sleep); At 12V < 20mA (GPS Sleep); At 12V < 35 mA (Nominal with no load); At 12V < 250 mA Max. (with full Load / Peak)
• Battery Temperature
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Width
  56.6
• Bluetooth
  Specification: 4.0+LE
• Supported Peripherals
  Temperature and Humidity Sensor, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver
  33 channel
• Location Accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  LTE: LTE FDD: Max 10 Mbps (DL)/Max 5 Mbps (UL)
• Network
  Technology: LTE Cat 1, GSM
• 2G Bands
  FMC150-QJIB0: GSM: B2/B3/B5/B8
• Data Support
  SMS (text/data)
• Module
  Name: FMC150-QJIB0: Quectel EG915U-EU with Teltonika TM2500
• Technology
  LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, E-Mark, RCM, RoHS, REACH
• Features
  CAN Data: Fuel level (dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle distance traveled, Engine speed (rpm), Accelerator pedal position
• Sensors
  Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• LTE TDD
  Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• 4G LTE Cat 1 Bands
  FMC150-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
• SMS
  Configuration, Events, DOUT Management, Debugging
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital Input 1, Accelerometer, External Supply Voltage, Motor RPM
• GSM
  GPRS: Max 85.6 kbps (DL)/ Max 85.6 kbps (UL)
• FMC150-QKIB0
  2, 1 (Digital Input 1), 1, 3, GSM: B2/B3/B5/B8, LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66, Quectel EG915U-LA with Teltonika TM2500
• Scenarios
  Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geof
