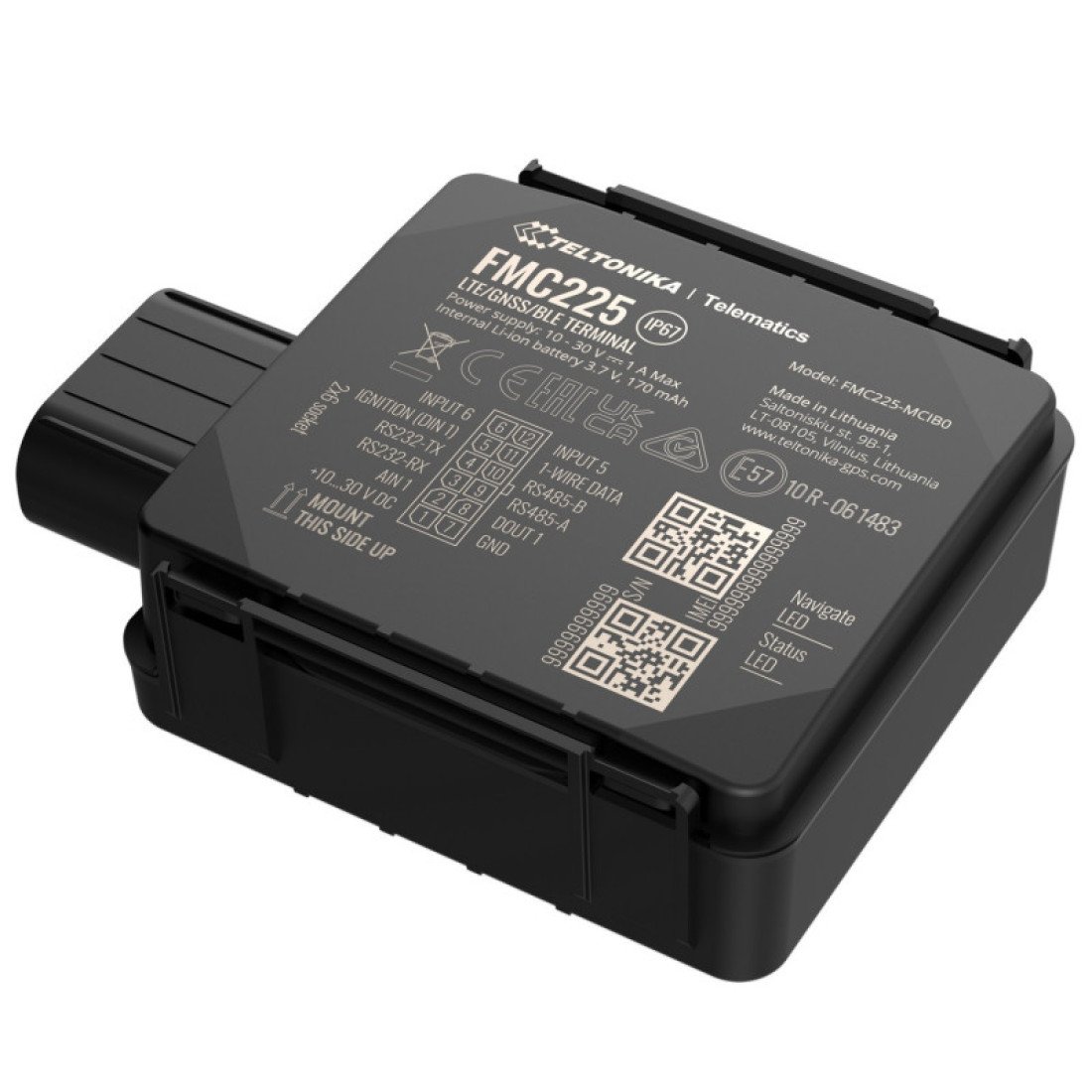

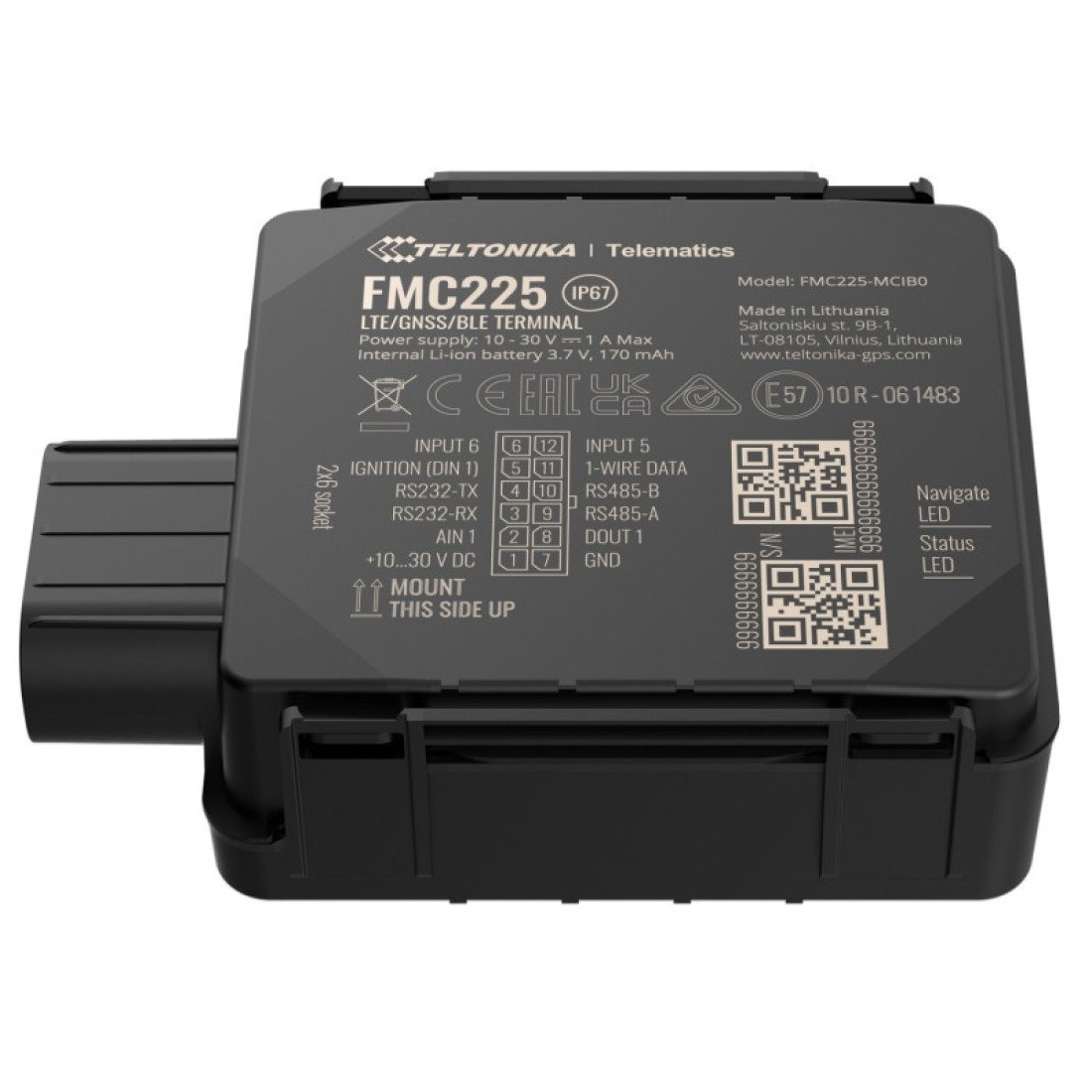

4G GPS tracker Teltonika FMC225 IP67 with RS232/RS485

Technical specifications

• Interface
  Digital Inputs: 2
• Digital Outputs
  1
• Analog Inputs
  1
• 1-Wire
  1
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• RS232
  1
• USB
  2.0 Micro-USB
• CAN adapter inputs
  1
• LED indication
  2 LED Status Indicators
• RS485
  1
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15 %)
• SIM
  2x SIM cards (Dual-SIM)
• Memory
  Internal Flash Memory 128MB
• Weight
  79.5
• Height
  25.6
• Length
  70.5
• Power supply
  Input voltage range: 10-30VDC with overvoltage and reverse polarity protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Operating temperature (with battery)
  from -20 to +40 °C
• Dimensions
  70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 x 67.0 x 25.6 mm (L x W x H) (length with connector socket)
• Operating conditions / Housing
  Operating temperature (without battery): from -20 °C to +85 °C
• Internal fuse
  3A, 125V
• Storage temperature (without battery)
  -20 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP67
• Battery charge temperature
  from 0 to +45 °С
• Battery discharge temperature
  from -20 to +60 °С
• Power
  At 12 V < 4 mA (ultra-deep sleep); At 12 V < 6 mA (deep sleep); At 12 V < 12 mA (deep sleep); At 12 V < 19 mA (GPS sleep); At 12 < 36 mA (nominal value without load); At 12 V <2 A max. (at full load/peak load)
• Battery Temperature
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Width
  67
• Bluetooth
  Specification: 4.0+LE
• Supported Peripherals
  Temperature and Humidity Sensor, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver
  33 channel
• Storage temperature (with battery)
  from -20 to +45 °С
• Location Accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  LTE: LTE FDD: Max 10 Mbps (DL)/Max 5 Mbps (UL)
• Network
  Technology: LTE Cat 1, GSM
• 2G Bands
  FMC225-MBIB0: GSM: B2/B3/B5/B8
• Data Support
  SMS (text/data)
• Module
  Name: FMC225-MBIB0: MeiG SLM320-E with Teltonika TM2500
• Technology
  LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
• Certification
  Standards: CE-RED, E-mark, RCM, Anatel (expected), TRA, CITC, REACH, RoHS
• Features
  Sensors: Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• LTE TDD
  Max 8 Mbps (DL)/Max 2 Mbps (UL)
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• 4G LTE Cat 1 Bands
  FMC225-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28
• SMS
  Configuration, Events, DOUT Management, Debugging
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital input 1, accelerometer, external supply voltage, engine speed (CAN-adapters, OBDII-dongle)
• GSM
  GPRS: Max 85.6 Kbps (DL)/Max 85.6 Kbps (UL)
• FMC225-MCIB0
  GSM: B2/B3/B5/B8, LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, MeiG SLM320-LA with Teltonika TM2500
• Scenarios
  Eco Driving, Speeding Detection, GNSS Fuel Meter, DOUT Call Control, Excessive Idling Detection, Immobilizer, IButton Read Notification, Mains Disconnection Detection, Towing Detection, Crash Detection, Automatic
• LTE-TDD
  B38/B40/B41, B40
• Fuel Monitoring
  LLS (Analog), RS232/485 Fuel sensor, LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
• RS232 modes
  Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, Satellite Backup (Iridium Edge)
• RS485 modes
  Log Mode, NMEA, LLS, TCP ASCII/Binary
