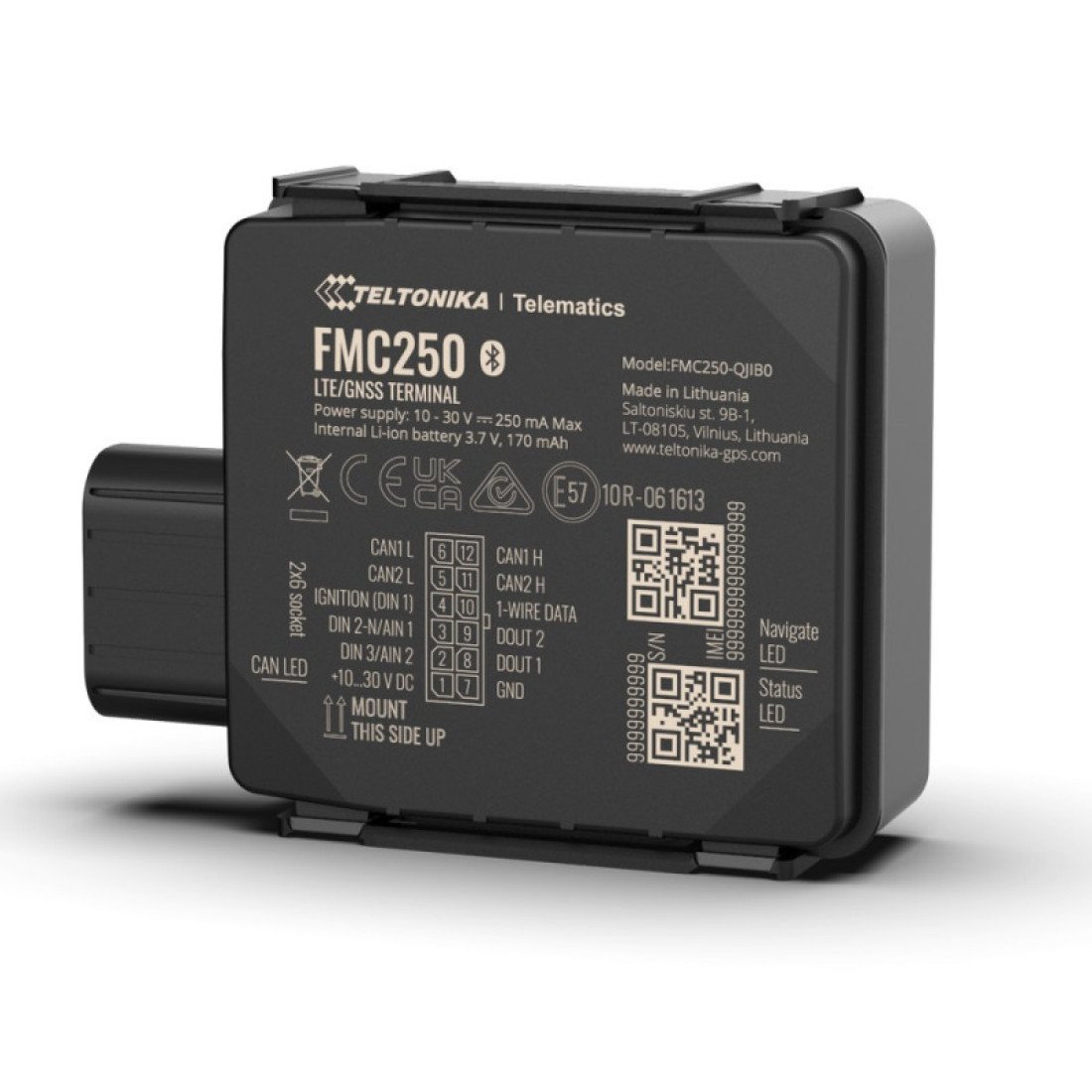

4G GPS tracker Teltonika FMC250 with CAN bus

Technical specifications

• Interface
  Digital inputs: FMC250-QJIB0: 3; FMC250-QKIB0: 2
• Digital Outputs
  FMC250-QJIB0: 2; FMC250-QKIB0: 3
• Negative inputs
  FMC250-QJIB0: 1 (digital input 2); FMC250-QKIB0: –
• Analog Inputs
  FMC250-QJIB0: 2;FMC250-QKIB0: 1
• Pulse inputs
  FMC250-QJIB0: 2 (digital input 1, digital input 2); FMC250-QKIB0: 1 (digital input 1)
• 1-Wire
  1
• GNSS Antenna
  Internal high gain
• Cellular Antenna
  Internal high gain
• USB
  2.0 Micro-USB
• CAN interfaces
  2
• SIM
  Micro-SIM or eSIM
• Memory
  128 MB of internal flash memory
• Weight
  73
• Height
  25.6
• Length
  85
• Power supply
  Input voltage range; 10-30V DC with overvoltage and reverse polarity protection; Internal backup battery; Lithium-ion battery 170 mAh, 3.7 V (0.63 Wh); Power consumption; At 12 V < 6 mA (ultra-deep sleep); At 12 V < 8 mA (deep sleep); At 12 V < 11 mA (Deep sleep online); At 12 V < 20 mA (GPS in sleep mode); At 12 V < 35 mA (nominal without load); At 12 V < 250 mA Max. (with full load / peak)
• світлодіодна індикація
  3
• Dimensions
  70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 x 67.0 x 25.6 mm (L x W x H) (length with connector socket)
• Operating conditions / Housing
  Operating temperature (without battery): -40 °C to +85 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  5% to 95% non-condensing
• Battery charge temperature
  from 0 °C to +45 °C
• Battery discharge temperature
  from -20 °C to +60 °C
• Battery Storage Temperature
  20 °C to +45 °C for 1 month; -20 °C to +35 °C for 6 months
• Width
  67
• Bluetooth
  Specification: 4.0 + LE
• Intrusion protection class
  IP67
• Supported Peripherals
  Temperature and humidity sensor, Inateck barcode scanner, support universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS; Tracking sensitivity -165 dBm; Receiver 33 tracking channel, 99 engagement channel; Position accuracy < 2.5 m CEP; Speed accuracy < 0.1 m/s (error +/- 15%); Hot start < 1 s; Warm start < 25 s; Cold start < 35 s
• 2G Bands FMC250-QJIB0
  GSM: B2/B3/B5/B8; FMC250-QKIB0: GSM: B2/B3/B5/B8
• 4G LTE Bands FMC250-QJIB0
  LTE FDD: B1/B3/B7/B8/B20/B28; FMC250-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66
• LTE Data Transfer
  LTE FDD: max. 10 Mbps (DL)/max. 5 Mbit/s (UL); LTE TDD: max. 85.6 Mbps (DL)/max. 85.6 Mbps (UL); GSM: GPRS: Max. 85.6 Kbit/s (DL)/ Max. 85.6 Kbit/s (UL); SMS data support (text/data)
• Network
  Technologies LTE Cat 1, GSM
• Technologies
  LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH
• Supported protocols
  OEM, J1939, IES500, IES125
• Module
  Name: FMC250-QJIB0: Quectel EG915U-EU with Teltonika TM2500
• Certification
  Standards: CE/RED, E-Mark, RCM, RoHS, REACH
• Sleep modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Features
  CAN Data: Fuel Level (Dashboard), Total Fuel Consumption, Vehicle Speed (Wheel), Vehicle Distance, Engine Speed (rpm), Accelerator Pedal Position
• Firmware configuration and update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
• Sensors
  Accelerometer
• SMS
  Configuration, Events, Control DOUT, debug
• GPRS commands
  Configuration, control DOUT, debug
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital input 1, accelerometer, external supply voltage, motor speed
• Scenarios
  Eco Driving, Over Speed Detection, Obstacle Detection, GNSS Fuel Meter, DOUT Control via Call, Overload Detection idle, immobilizer, iButton read notification, disconnection detection, tow detection, accident detection, automatic geofence, manual geofence, trip
