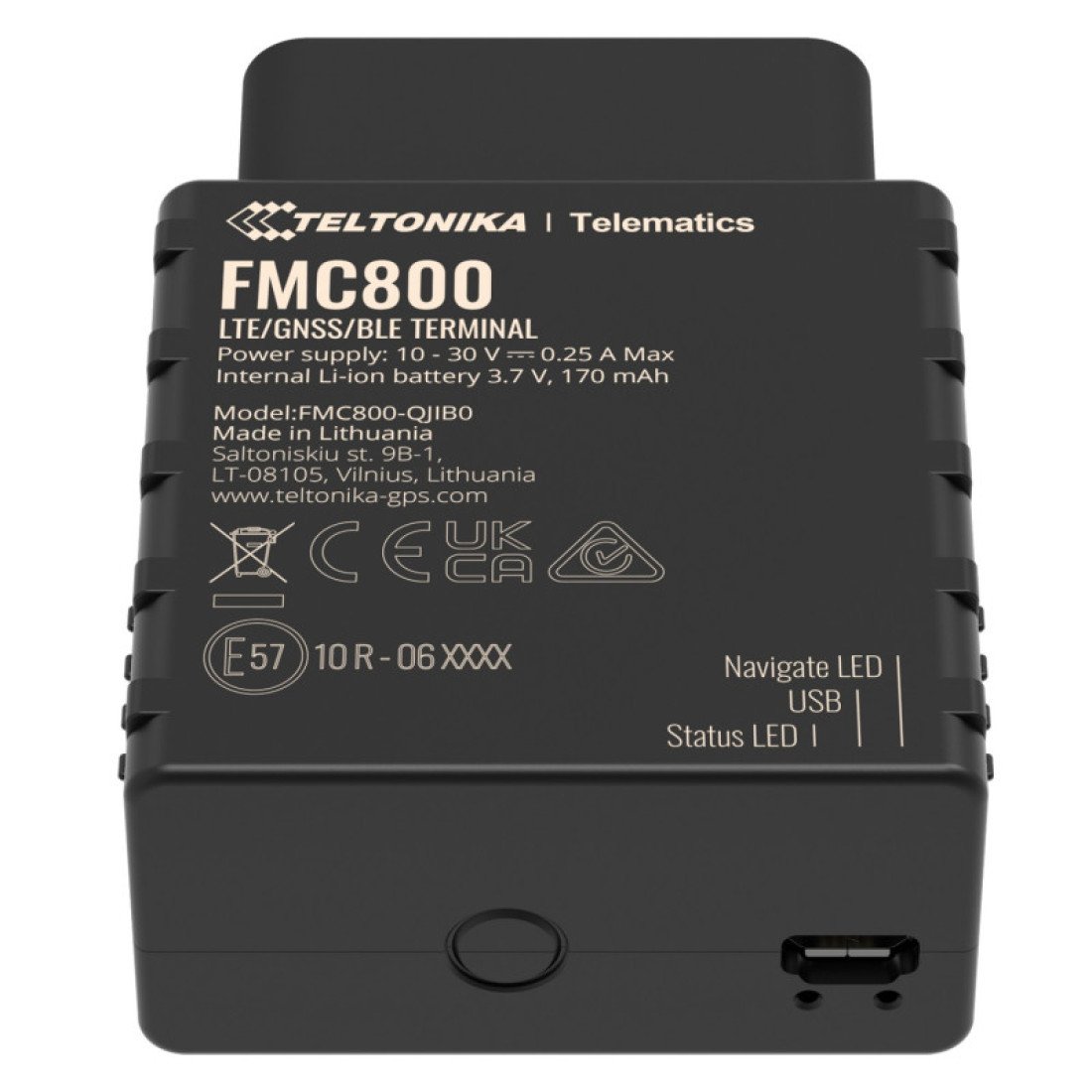

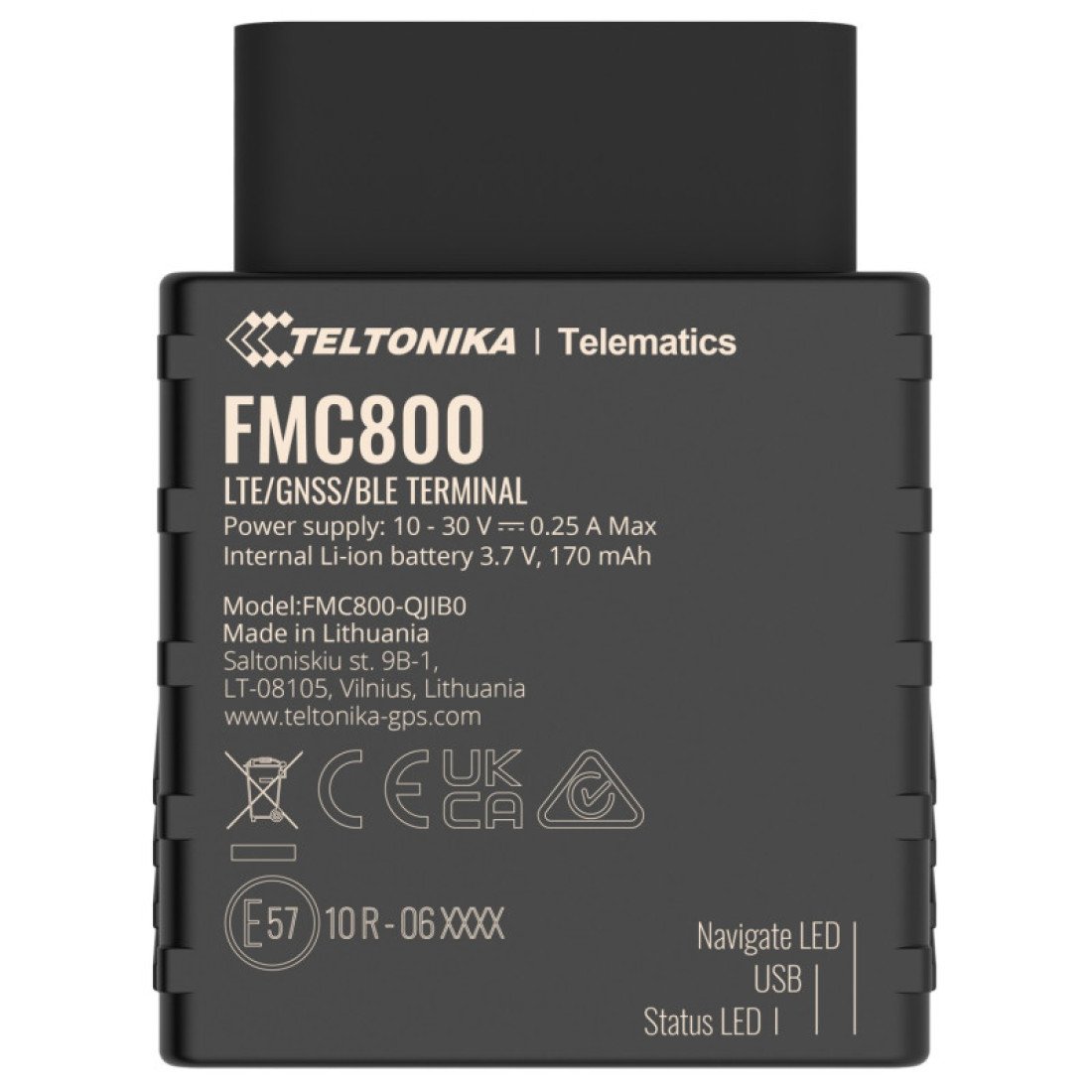

4G GPS Tracker Teltonika FMC800 Plug & Play
4G GPS Tracker Teltonika FMC800 Plug & Play
text_total_savings 0
Payment
Account
Cash
Shipping
Courier
Teltonika FMC800 Plug & Play 4G GPS tracker is a quick solution for car monitoring without complicated installation. The device is conveniently installed in passenger vehicles, delivery or service parks to see the route, events and status online in eQuGPS.
How GPS monitoring works
Mobile network
Data is transmitted via the mobile network to the eQuGPS Tracking System.
02
Platform
The platform stores the received data and generates routes, events, reports, and notifications.
03
Application
The user sees information in the web account and mobile application.
04
How does the eQuGPS system work?
During an unstable GPS signal or operation of electronic warfare equipment, anomalous coordinates may appear.
eQuGPS Tracking System analyzes the received points and filters out obviously incorrect values, reducing false route jumps.
Module
- NameFMC800-QJIB0: Quectel EG915U-EU with Teltonika TM2500
- TechnologyLTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE
Technical specifications
- Operating temperature (without battery)-40 °C to +85°C
GNSS
- Speed accuracy< 0.1 m/s
- Receiver33 channel
- GNSS receiver sensitivity-165 dBM
- Positioning accuracy< 2.5 CEP
- Hot start< 1 s
- Warm start< 25 s
- Cold start< 35 s
Cellular communication
- 2G bandsFMC800-QJIB0: GSM: B2/B3/B5/B8
- 4G bandsFMC800-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
- Data transferLTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
- Data supportSMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Power
- Backup battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
- Input voltage range10 - 30 V DC with overvoltage protection
- Internal fuse3 A, 125 V
BLUETOOTH® technology
- Specification4.0 + LE
- Supported peripheralsTemperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Physical characteristics
- Dimensions67,2 x 49,6 x 25 mm (L x W x H)
- Weight63 g
Interface
- Cellular antennaInternal High Gain
- ConnectionOBDII socket
- GNSS antennaInternal High Gain
- LED indication2 status LED lights
- Memory128MB internal flash memor
- SIMMicro-SIM
- USB2.0 Micro-USB
Operating environment
- Battery charge temperature0 °C to +45 °C
- Battery discharge temperature-20 °C to +60 °C
- Battery storage temperature-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months
- Ingress Protection RatingIP41
- Operating humidity5% to 95% non-condensing
- Storage temperature (without battery)-40 °C to +85 °C
Features
- Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile application (Configuration)
- GPRS commandsConfiguration, Debug
- Ignition ON detectionAccelerometer, External Power Voltage
- ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
- SensorsAccelerometer
- Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
- SMSConfiguration, Events, Debug
- Time SynchronizationGNSS, NITZ, NTP
Certification and confirmation
- Brand / ManufacturerTeltonika
- RegulatoryFMC800-QJIB0: CE RED, E-Mark, RCM
- SellereQuGPS
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Similar products
Need help installing GPS equipment?
Regardless of the device model, specialists will select the optimal installation location, make the connection, and check the correct operation of the tracker with the monitoring platform. Our partners will help you set up and install GPS equipment for your car.
Don't know where to install the device? Our partners throughout Ukraine are ready to professionally install GPS equipment in your city with connection to the monitoring platform.
