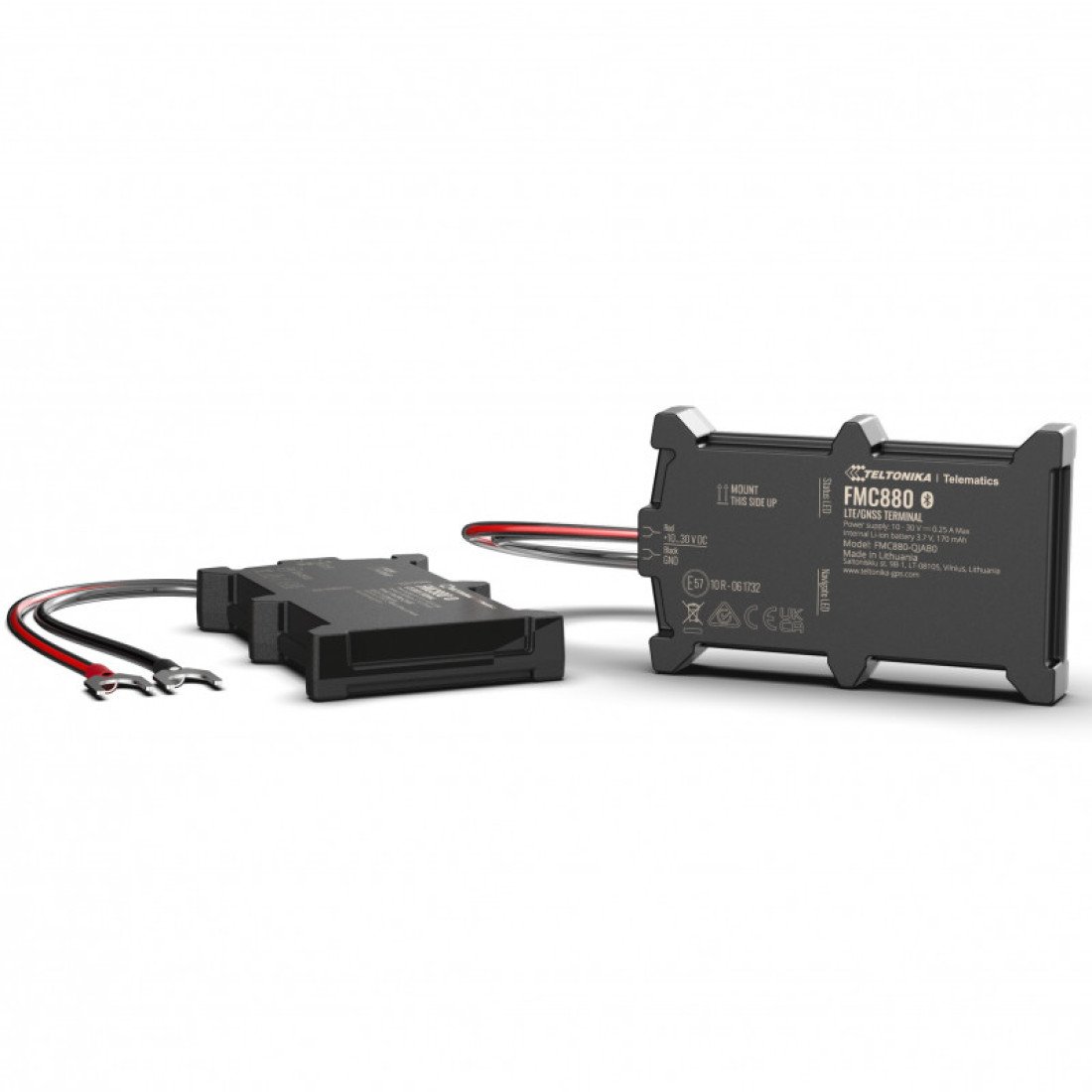

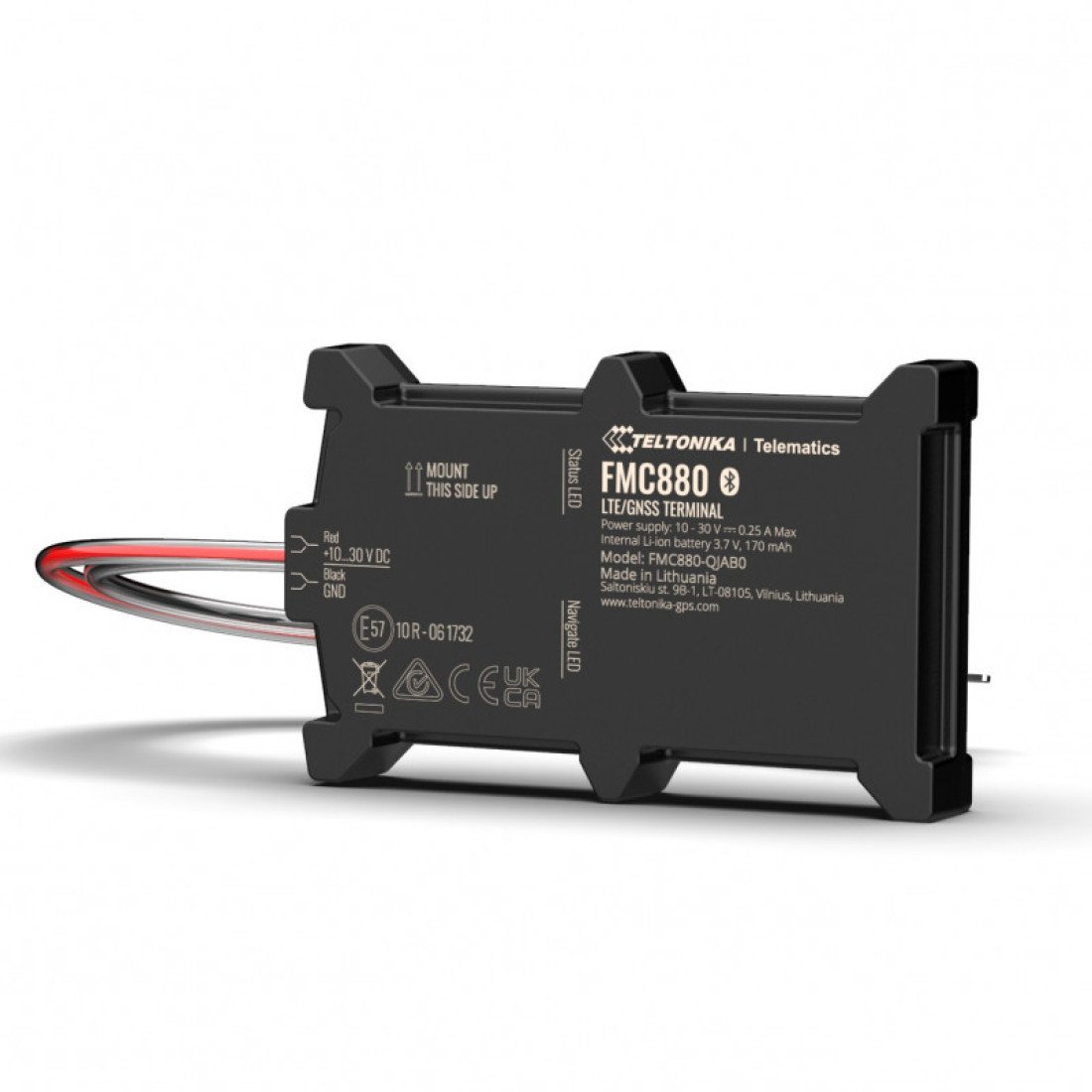

4G GPS tracker Teltonika FMC880 with precise GNSS L1/L5

Technical specifications

• Interface
  GNSS Antenna: Internal High Gain
• Cellular Antenna
  Internal with high gain
• USB
  2.0 USB Micro B
• LED indication
  2 Status Indicator LEDs
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15%)
• SIM
  Micro-SIM
• Memory
  Internal Flash Memory 128MB
• Weight
  63
• Transmission power
  Class 5 for GSM850/900: 30±5 dBm
• LTE FDD (CAT 1)
  B1/B3/B5/B7/B8/B20/B28, B2/B3/B4/B5/B7/B8/B28/B66
• Power supply
  Input Voltage Range: 10-30 In DC with overvoltage and reverse polarity protection.
• GSM (GPRS)
  max. 85.6 Kbit/s (DL) / Max. 85.6 Kbit/s (UL)
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Operating temperature (with battery)
  from 0 °C to +40 °C
• Dimensions
  92.5 x 57.6 x 14 mm
• Class 3 for GSM1800/1900
  29±5 dBm
• Operating conditions / Housing
  Operating temperature (without battery): -40 °C to +85 °C
• Internal fuse
  3A, 125V
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP65
• Battery charge temperature
  from 0 °C to +45 °C
• Class 3 for LTE-FDD
  26±5 dBm
• Battery discharge temperature
  from -20 °C to +60 °C
• Maximum battery life
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Bluetooth
  Specification: 4.0 + LE, 5.54±2 dBm
• Supported Peripherals
  Temperature and humidity sensor, OBDII dongle, Inateck barcode scanner, BLE universal sensor support
• GNSS / Connectivity
  GNSS: L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*
• L5
  GPS, GALILEO, BEIDOU, 60 channel
• Display sensitivity
  165 dBm
• Receiver
  L1: 75 channel
• Storage temperature (with battery)
  -20 °C to +45 °C
• Positioning accuracy
  < 1 m CEP
• Hot Start
  < 1 s
• Warm Start
  < 24 p
• Cold Start
  < 35 s
• Data Exchange
  LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
• Network
  2G Bands: GSM: B2/B3/B5/B8
• Data Support
  SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)
• Module
  Name: FMC880-QJAB0: Quectel EG915U-EU with AG3335
• Technology
  LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Norms: FMC880-QJAB0: CE/RED, E-Mark, RCM, REAC
• Features
  Sensors: Accelerometer
• Bluetooth Level
  4.26±2 dBm
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update
  FOTA Web, Teltonika Configurator (USB, Bluetooth)
• 4G LTE Cat 1 Bands
  FMC880-QJAB0
• FMC880-QKAB0
  Quectel EG915U-LA with AG3335
• SMS
  Setup, Events, Debugging
• GPRS commands
  Setup, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Accelerometer, External supply voltage, Engine speed (OBDII dongle)
• Scenarios
  Eco Driving, Overspeed Detection, Fuel Meter GNSS, Excessive Idling Detection, Network Disconnection Detection, Towing Detection, Accident Detection, Automatic Geofence, Manual Geofence, Trip Notification.
