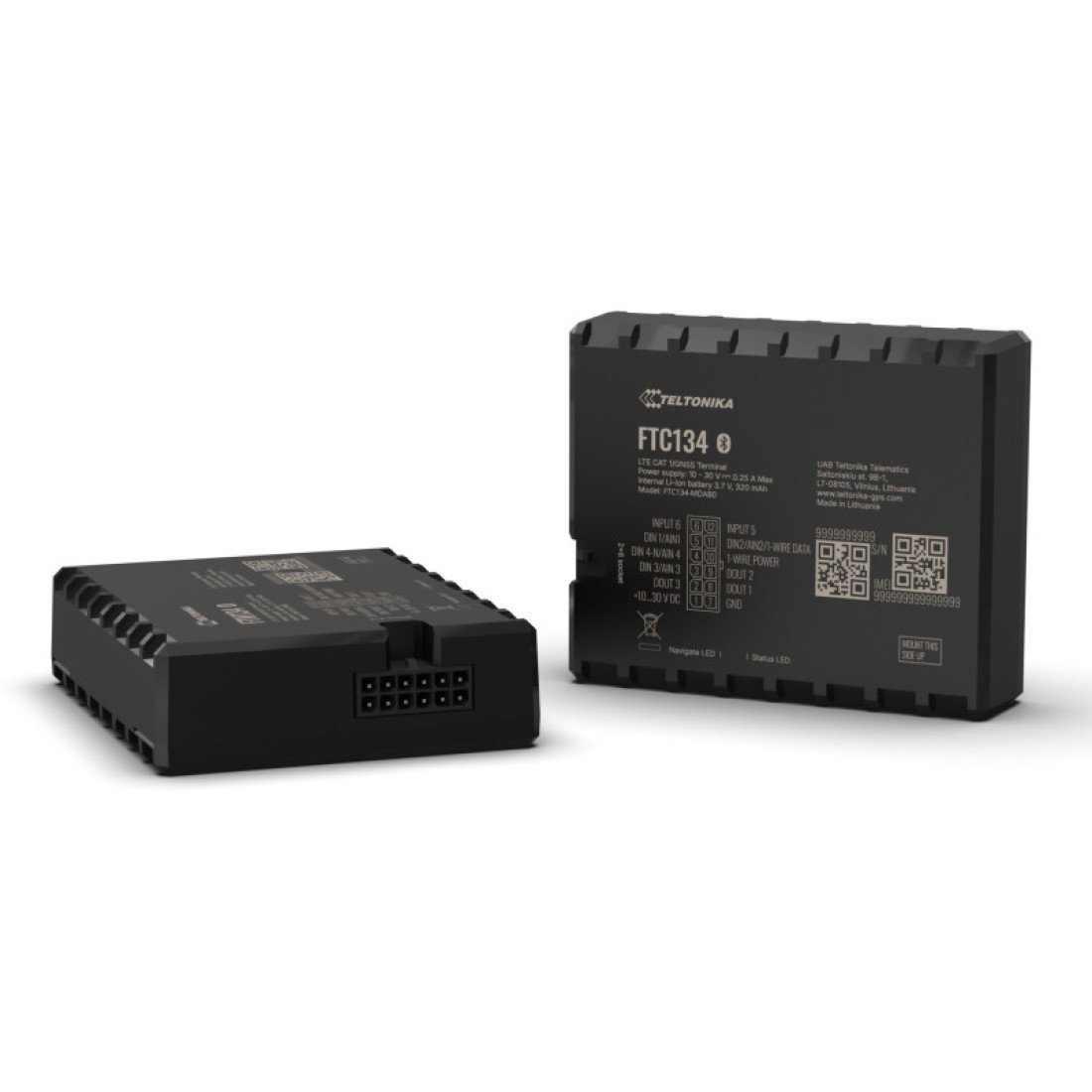

4G GPS tracker Teltonika FTC134 with CAN and FT platform

Module

• Name
  FTC134-MDAB0: MeiG SLM336-E FTC134-MEAB0: MeiG SLM336-L
• Technology
  LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE

Technical specifications

• Firmware configuration and update
  FOTA WEB, Telematics Configuration Tool (TCT)

GNSS

• Speed accuracy
  < 0.1 m/s (within +/- 15% error)
• Receiver
  135 tracking/acquisition channels
• GNSS receiver sensitivity
  -165 dBM
• Positioning accuracy
  < 1.5 m CEP
• Hot start
  < 1s
• Warm start
  < 25s

Cellular communication

• Technologies
  LTE CAT 1/GSM
• 2G bands
  FTC134-MDAB0: GSM: B2/B3/B5/B8 FTC134-MEAB0: GSM: B2/B3/B5/B8
• 4G bands
  FTC134-MDAB0: LTE-FDD (CAT1): B1/B3/B5/B8/B20/B28 FTC134-MEAB0: LTE-FDD (CAT1): B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer
  LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
• Transmission power
  Class 4 for GSM850/900: 33±2dBm Class 1 for GSM1800/1900: 30±2dBm Class 3 for LTE FDD: 23±2.7dBm
• Data support
  SMS (TEXT, PDU), Network protocols (TCP, UDP)

Data codec

• New attribute_391
  Codec 8 Extended

Power

• Backup battery
  320mAh Li-Ion battery, 3.7V (1.184 Wh)
• Energy consumption
  At 12V < 25 mA (nominal with no load) At 12V < 0.25A Max (with full Load/Peak
• Input voltage range
  8-32 V DC
• Internal fuse
  3A, 125V

BLUETOOTH® technology

• Specification
  5.4 + LE

Physical characteristics

• Dimensions
  77 x 63 x 21.25 mm (L x W x H)
• Weight
  73.7g

Interface

• 1-Wire
  1
• Analog Inputs
  4
• CAN adapter inputs
  1* Pinouts are software-defined, configurable pins that can be selected based on the user scenario. For more information, refer to the FTC134 pinouts section.
• Cellular antenna
  Internal High Gain
• Digital outputs
  3
• GNSS antenna
  Internal High Gain
• LED indication
  2 status LED lights
• Memory
  128MB internal flash memory
• Negative inputs
  1
• SIM
  Nano-SIM
• USB
  USB 2.0 USB Type-C

Operating environment

• Battery charge temperature
  0 °C to +45 °C
• Battery discharge temperature
  -20 °C to +60 °C
• Ingress Protection Rating
  IP41
• Operating humidity
  65 ± 20% non-condensing
• Operating temperature (with battery)
  Робоча температура (з батареєю)
• Operating temperature (without battery)
  -30 °C to +85 °C
• Storage temperature (with battery)
  -20 °C to +60 °C
• Storage temperature (without battery)
  -30 °C to +85 °C
• Battery storage conditions
  -10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 12 months

Features

• GPRS commands
  Configuration, DOUT control, Debug
• Ignition ON detection
  Digital Input 1, Accelerometer, External Power Voltage
• Scenarios
  Eco Driving, Over Speeding, Idling Detection, Imobilizer, Unplug Detection, Jamming Detection, Crash Detection, Dallas Sensor Support, Towing Detection
• Sensors
  Accelerometer
• Sleep modes
  Online Deep Sleep, Deep Sleep, Power Off Sleep
• SMS
  Configuration, DOUT control, Debug
• Time Synchronization
  GNSS, NITZ, NTP

Certification and confirmation

• Brand / Manufacturer
  Teltonika
• Regulatory
  *FTC134-MDAB0: CE/RED, UKCA, E-Mark, RCM *FTC134-MEAB0: Anatel *In progress
