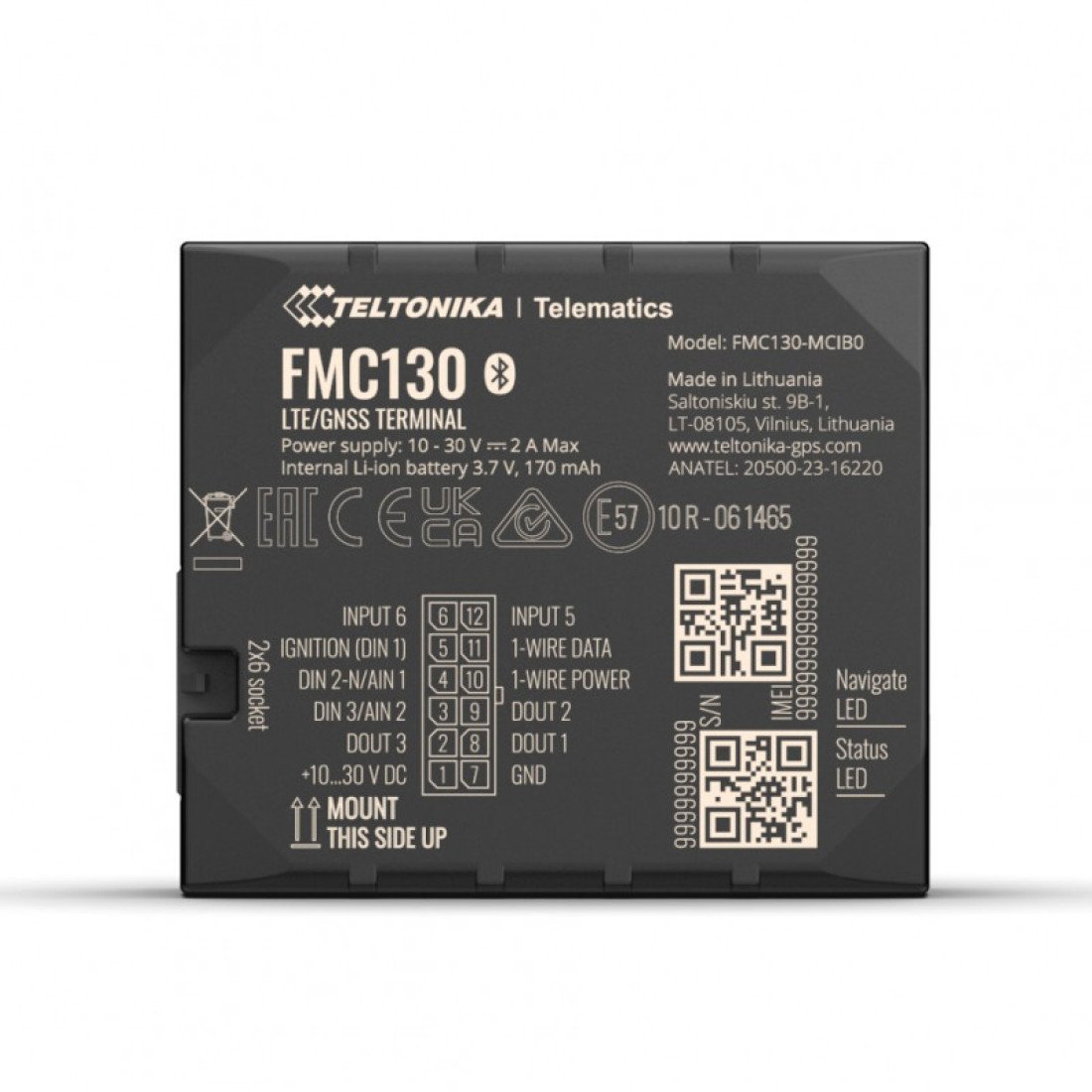

4G Teltonika FMC130 GPS Tracker with Flexible Inputs

Technical specifications

• Interface
  Digital Inputs: 3
• Digital Outputs
  3
• Negative inputs
  1 (Digital Input 2)
• Analog Inputs
  2
• Pulse inputs
  2 (Digital Input 1, Digital Input 2)
• 1-Wire
  1
• GNSS Antenna
  Internal with high gain
• Cellular Antenna
  Internal with high gain
• USB
  2.0 Micro-USB
• CAN adapter inputs
  1
• LED indication
  2 LED Status Indicators
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15 %)
• SIM
  Micro-SIM or eSIM
• Memory
  Internal Flash Memory 128MB
• Weight
  61
• Height
  20.6
• Length
  65
• Power supply
  Input voltage range: 10-30VDC with overvoltage and reverse polarity protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Operating temperature (with battery)
  20 °C to +40 °C
• Dimensions
  65 x 56.6 x 20.6 mm
• Operating conditions / Housing
  Operating temperature (without battery): -20 °C to +85 °C
• Internal fuse
  3A, 125V
• Storage temperature (without battery)
  20 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP41
• Battery charge temperature
  0 °C to +45 °C
• Battery discharge temperature
  20 °C to +60 °C
• Power
  At 12 V < 3 mA (Ultra Deep Sleep); At 12 V < 5 mA (Deep Sleep); At 12 V < 16 mA (Online Deep Sleep); At 12 V < 18 mA (GPS Sleep); At 12 V < 33 mA (nominal no load); For 12 V < 2 A Max. (at full load/peak)
• Battery Temperature
  20 °C to +45 °C for 1 month; 20 °C to +35 °C for 6 months
• Width
  56.6
• Bluetooth
  Specification: 4.0+LE
• Supported Peripherals
  Temperature and Humidity Sensor, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver
  33 channel
• Storage temperature (with battery)
  20 °C to +45 °C
• Location Accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  LTE: LTE FDD: Max 10 Mbps (DL)/Max 5 Mbps (UL)
• Network
  Technology: LTE Cat 1, GSM
• 2G Bands
  FMC130-ME1: GSM: B2/B3/B5/B8
• Data Support
  SMS (text/data)
• Module
  Name: FMC130-ME1: MeiG SLM320-E1 with Teltonika TM2500
• Technology
  LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, E-Mark, EAC, RoHS, REACH, CITC, RCM, IMDA, Anatel, JATE, TELEC, SIRIM QAS, SDPPI POSTEL, KC, ICASA
• Features
  Sensors: Accelerometer
• 3G Bands
  EC21-AU: WCDMA: B1/B2/B5/B8
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• LTE TDD
  Max 8 Mbps (DL)/Max 2 Mbps (UL)
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• 4G LTE Cat 1 Bands
  FMC130-ME1: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41
• SMS
  Configuration, Events, DOUT Management, Debugging
• EC21-EC
  WCDMA: B1/B8
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital Input 1, Accelerometer, External Supply Voltage, Engine RPM (CAN adapters, OBDII dongle)
• GSM
  GPRS: Max 85.6 Kbps (DL)/Max 85.6 Kbps (UL)
• FMC130-ME3
  GSM: B2/B3/B5/B8, LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41, MeiG SLM320-E2 with Teltonika TM2500
• Scenarios
  Eco Driving, Over Speed Detection, GNSS Fuel Meter, DOUT Call Management, Excessive Idling Detection, Immobilizer, IButton Read Notification, Mains Disconnection Detection, Towing Detection, Accident Detection, Automatic GSM Signal Suppression Detection*.; * GSM Suppression Detection function is supported only on SLM320-E and SLM320-LA equipment.
• FMC130-MCIB0
  GSM: B2/B3/B5/B8, LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40, MeiG SLM320-LA with Teltonika TM2500
• Fuel Monitoring
  LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
