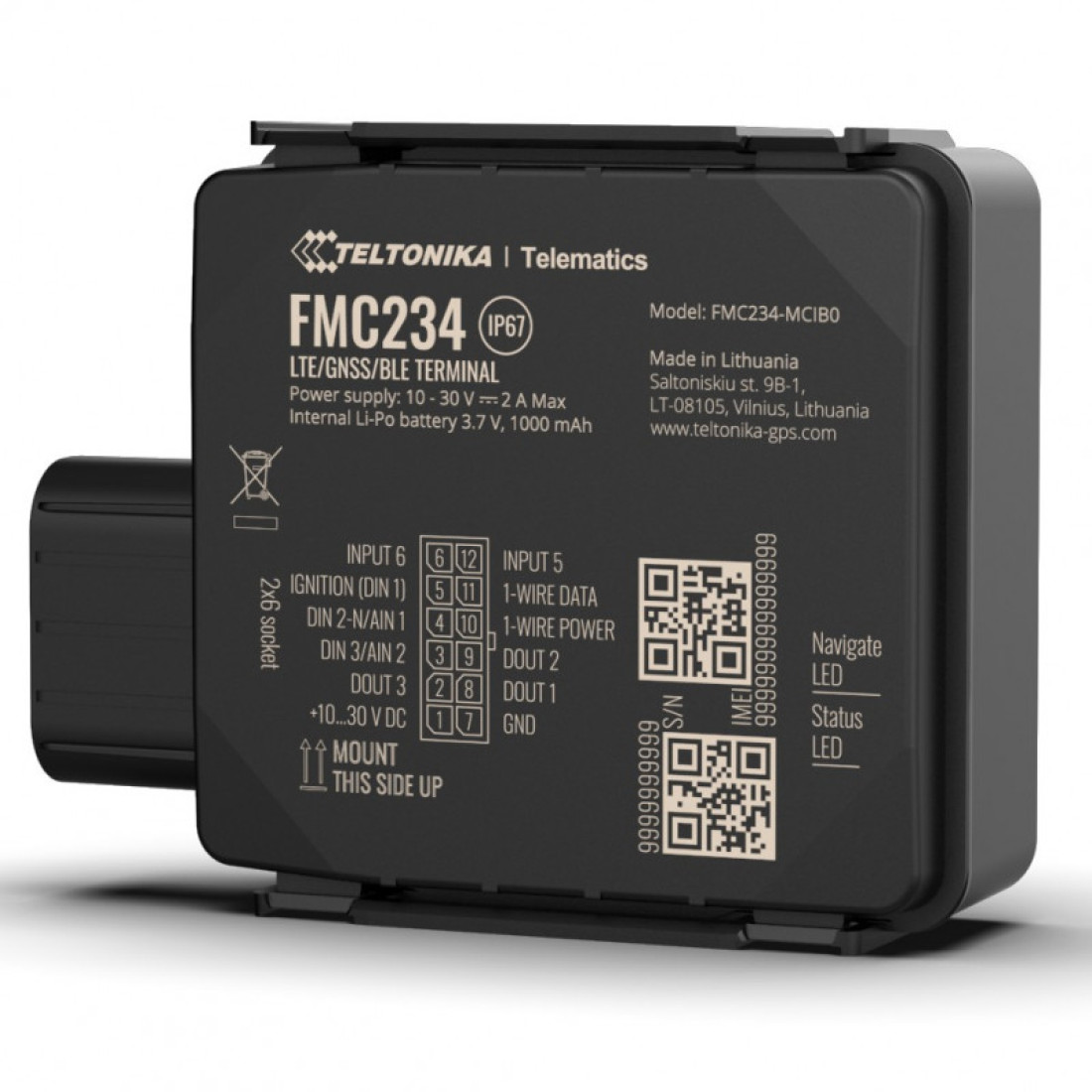

Autonomous 4G GPS tracker Teltonika FMC234 for car protection

Technical specifications

• Interface
  Digital Inputs: 3
• Digital Outputs
  3
• Negative inputs
  1 (digital input 2)
• Analog Inputs
  2
• Pulse inputs
  2 (digital input 1, digital input 2)
• 1-Wire
  1
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• USB
  2.0 Micro-USB
• CAN adapter inputs
  1
• LED indication
  2 Status Indicator LEDs
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15%)
• SIM
  Micro-SIM or eSIM
• Memory
  Internal Flash Memory 128MB
• Weight
  91.8
• Power supply
  Input Voltage Range: 10-30 In DC with overvoltage and reverse polarity protection.
• Required power
  at 12V < 3mA (Ultra Deep Sleep); At 12 V < 5 mA (deep sleep); At 12 V < 16 mA (online deep sleep); At 12 V < 18 mA (GPS in sleep mode); At 12 V < 33 mA (nominal without load); At 12 V < 2 A Max. (with full load / peak)
• Internal backup battery
  1000mAh, 3.7V (3.7Wh) Li-Polymer
• Operating temperature (with battery)
  from -20 °C to +60 °C
• Dimensions
  70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 x 67.0 x 25.6 mm (L x W x H) (length with connector socket)
• Operating conditions / Housing
  Operating temperature (without battery): -20 °C to +85 °C
• Internal fuse
  3A, 125V
• Storage temperature (without battery)
  -20 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP67
• Battery charge temperature
  from 0 °C to +45 °C
• Battery discharge temperature
  from -20 °C to +60 °C
• Maximum battery life
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Bluetooth
  Specification: 4.0 + LE
• Supported Peripherals
  Temperature and Humidity Sensor, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Display sensitivity
  165 dBm
• Receiver
  33 channel
• Storage temperature (with battery)
  from -20 °C to +60 °C
• Positioning accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  LTE: LTE FDD: Max 10 Mbps (DL)/Max 5 Mbps (UL)
• Network
  Technology: LTE Cat 1, GSM
• 2G Bands
  FMC234-MBIB0: GSM: B2/B3/B5/B8
• Data Support
  SMS (text/data)
• Module
  Name: FMC234-MBIB0: MeiG SLM320-E with Teltonika TM2500
• Technology
  LTE(CAT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, E-Mark, EAC, RoHS, REACH
• Features
  Sensors: Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• LTE TDD
  Max 8 Mbps (DL)/Max 2 Mbps (UL)
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• 4G LTE Cat 1 Bands
  FMC234-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41
• SMS
  Configuration, Events, Management DOUT, Debug
• GPRS commands
  Configuration, Control DOUT, Debug
• Time synchronization
  GNSS, NITZ, NTP
• FMC234-MCIB0
  GSM: B2/B3/B5/B8, LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40, MeiG SLM320-LA with Teltonika TM2500
• Ignition detection
  Digital Input 1, Accelerometer, External Supply Voltage, Engine RPM (CAN Adapters, OBDII Key)
• GSM
  GPRS: Max 85.6 Kbps (DL)/Max 85.6 Kbps (UL)
• Scenarios
  Eco Driving, Speeding Indication, Fuel Meter GNSS, DOUT Call Control, Excessive Idling Detection, Immobilizer, IButton Reading Notification, Disconnection Indication, Towing Detection, Accident Detection, Automatic Geofence, Manual Geofencing, Trip Notification, Signal Suppression Detection
• Fuel Monitoring
  LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII Key
