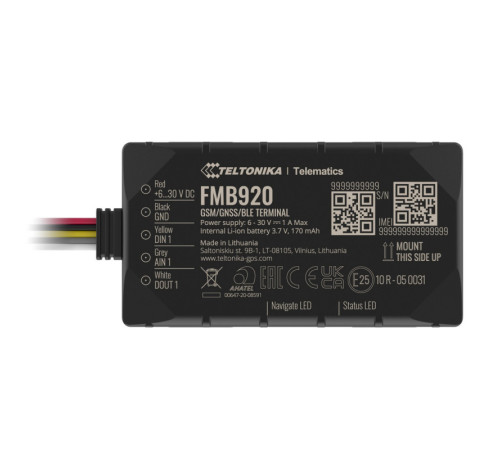

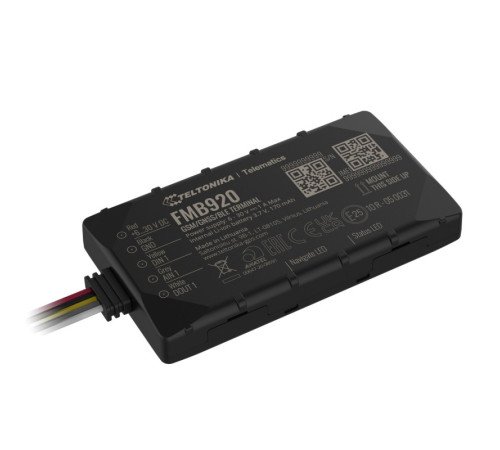

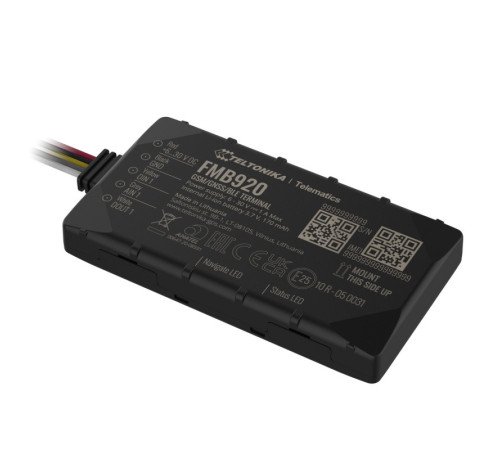

Compact GPS tracker Teltonika FMB920 with Bluetooth

Technical specifications

• Interface
  Digital Inputs: 1
• Digital Benefits
  1
• Analog Inputs
  1
• GNSS Antenna
  Internal with high gain
• Cellular Antenna
  Internal GSM High Gain
• USB
  2.0 Micro-USB
• LED indication
  2 LED Status Indicators
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15%)
• SIM
  Micro-SIM
• Memory
  Internal flash memory 128MB
• Weight
  54
• Height
  12
• Length
  79
• Power supply
  Input voltage range: 6-30V DC with surge protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Dimensions
  54*79*43 mm
• Operating conditions / Housing
  Operating temperature (without battery): -40 ° C to +85 ° C
• Internal fuse
  3A, 125V; At 12V < 2 mA (Ultra Deep Sleep); At 12V < 4 mA (Deep Sleep); At 12V < 5 mA (Online Sleep); At 12V < 6 mA (GPS Sleep); At 12V < 25 mA (nominal)
• Storage temperature (without battery)
  40 ° C to +85 ° C
• Housing protection level
  IP54
• Operating relative humidity
  5% to 95% non-condensing
• Battery charging temperature
  0 ° C to +45 ° C
• Battery discharge temperature
  20 ° C to +60 ° C; from -20 °C to +45 °C for 1 month; from -20 °C to +35 °C within 6 months
• Width
  43
• Bluetooth
  Specification: 4.0 + LE
• Supported Devices
  Temperature and humidity sensors, headset, OBDII dongle, Inateck Barcode Scanner, Support universal sensors BLE
• GNSS / Connectivity
  GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver
  33 channel
• Positioning accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Class B mobile station
• Network
  Technology: GSM
• 2G Bands
  Quad-band module 850/900/1800/1900 MHz
• Data Support
  SMS (text/data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, E-Mark, EAC, RoHS, REACH, Anatel, ICASA, SIRIM QAS, SDPPI POSTEL
• Features
  Sensors: Accelerometer
• Sleep Mode
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• SMS
  Configuration, Events, Control DOUT, Debug
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital Input 1, Accelerometer, External supply voltage, Engine RPM (OBDII dongle)
• Scenarios
  Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Fuel Monitoring
  LLS (Analog), OBDII dongle
