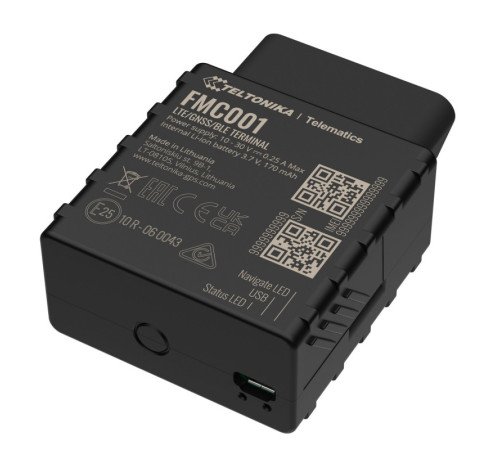

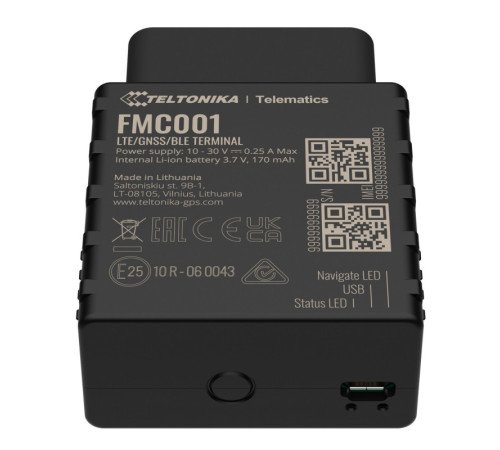

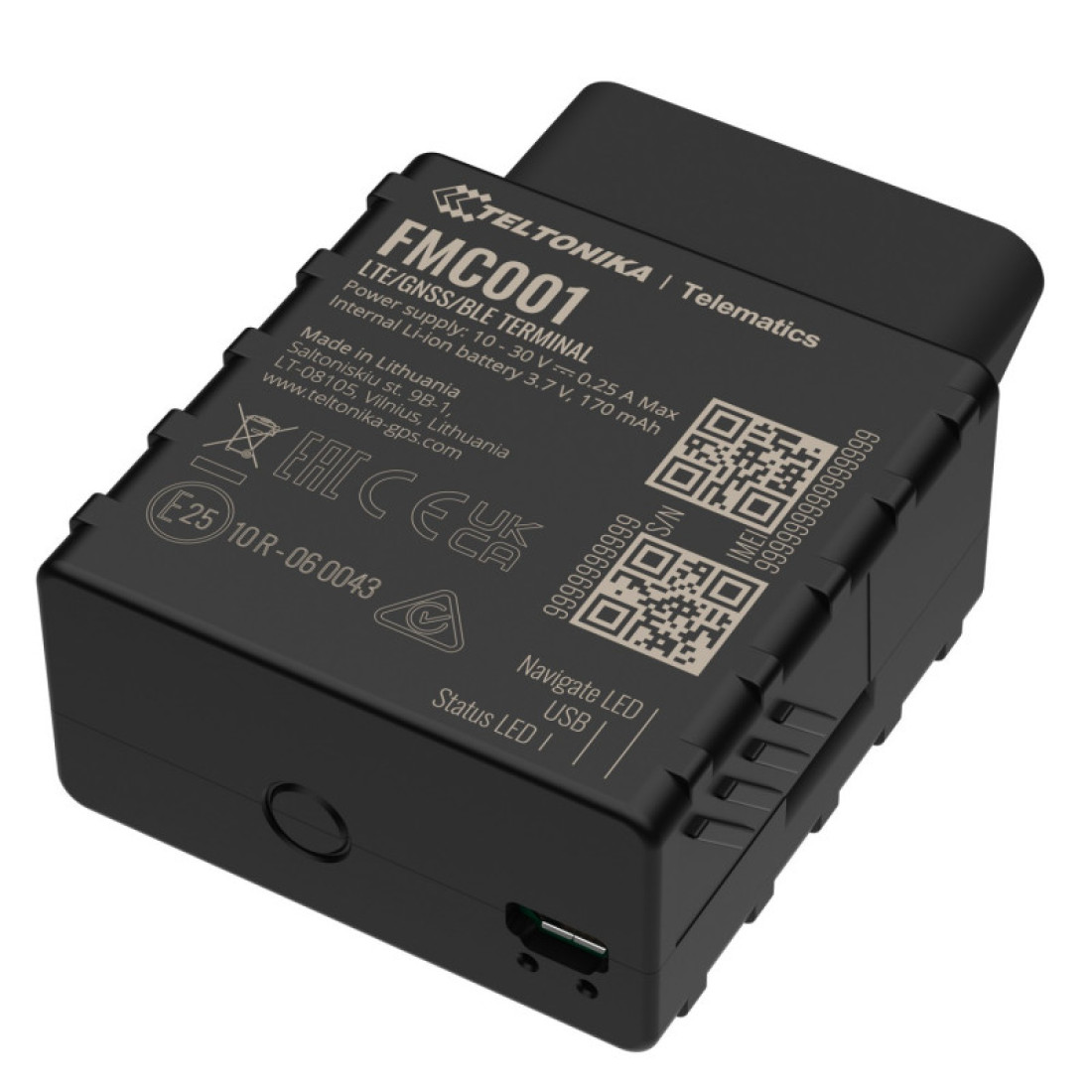

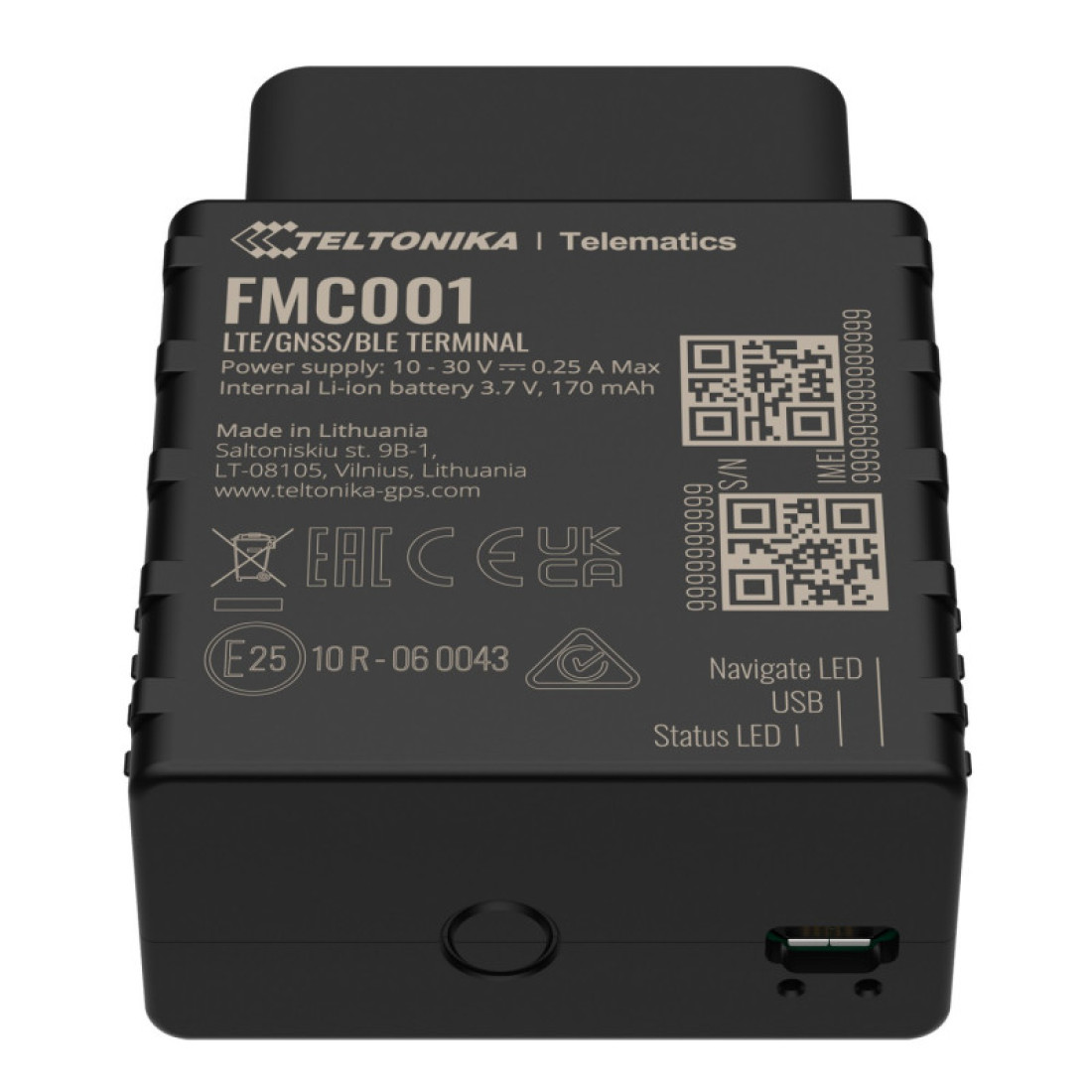

OBD 4G GPS Tracker Teltonika FMC001 with Bluetooth

Technical specifications

• Interface
  Connection: OBDII Connector
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• USB
  2.0 Micro-USB
• LED indication
  2 LED Status Indicators
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15 %)
• SIM
  Micro-SIM
• Data
  K-Line, CAN bus data
• Memory
  Internal Flash Memory 128MB
• Read data
  Up to 32 vehicle onboard parameters, supported OBD protocols; SAE J1850 PWM (41.6 kbaud); SAE J1850 VPW (10.4 kbaud); ISO 9141-2 (5 baud init, 10.4 kbaud); ISO 14230-4 KWP (5 baud init, 10.4 kbaud); ISO 14230-4 KWP (fast init, 10.4 kbaud); ISO 15765-4 CAN (11 bit ID, 250 kbaud); ISO 15765-4 CAN (11 bit ID, 500 kbaud); ISO 15765-4 CAN (29 bit ID, 250 kbaud); ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• Weight
  63
• Height
  25
• Length
  67.2
• Power supply
  Input voltage range: 10-30VDC with overvoltage and reverse polarity protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Dimensions
  67.2 x 49.6 x 25 mm
• Operating conditions / Housing
  Operating temperature (without battery): -40 to +85 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP41
• Battery charge temperature
  from 0 to +45 °С
• Battery discharge temperature
  from -20 to +60 °С
• Power
  At 12 V < 6.5 mA (ultra-deep sleep); At 12 V < 8 mA (deep sleep); At 12 V < 13 mA (online sleep mode); At 12 V < 16.3 mA (GPS sleep); At 12 V < 31 mA (nominal)
• Battery Temperature
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Width
  49.6
• Bluetooth
  Specification: 4.0+LE
• Supported Peripherals
  Temperature and Humidity Sensor, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver
  33 channel
• Location Accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  LTE: LTE FDD: Max. 10 Mbps (DL)/Max 5 Mbps (UL)
• Network
  Technology: LTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE
• 2G Bands
  EG91-EX: GSM: B3/B8
• Data Support
  SMS (text/data)
• Module
  Name: Quectel EG91-EX, Teltonika TM2500
• Technology
  LTE(CAT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, UKCA, E-Mark, EAC, RoHS, REACH, RCM, SDPPI (POSTEL)
• Features
  Sensors: Accelerometer
• 3G Bands
  EG91-EX: WCDMA: B1/B8
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• 4G LTE Cat 1 Bands
  EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28
• SMS
  Configuration, Events, Debugging
• GPRS commands
  Configuration, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Accelerometer, External Power Supply Voltage, Engine RPM
• UMTS
  WCDMA: Max. 384 Kbps (DL)/Max 384 Kbps (UL)
• GSM
  GPRS: Max. 107 Kbit/s (DL)/Max. 85.6 Kbps (UL)
• Scenarios
  Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Fuel Monitoring
  OBD II
