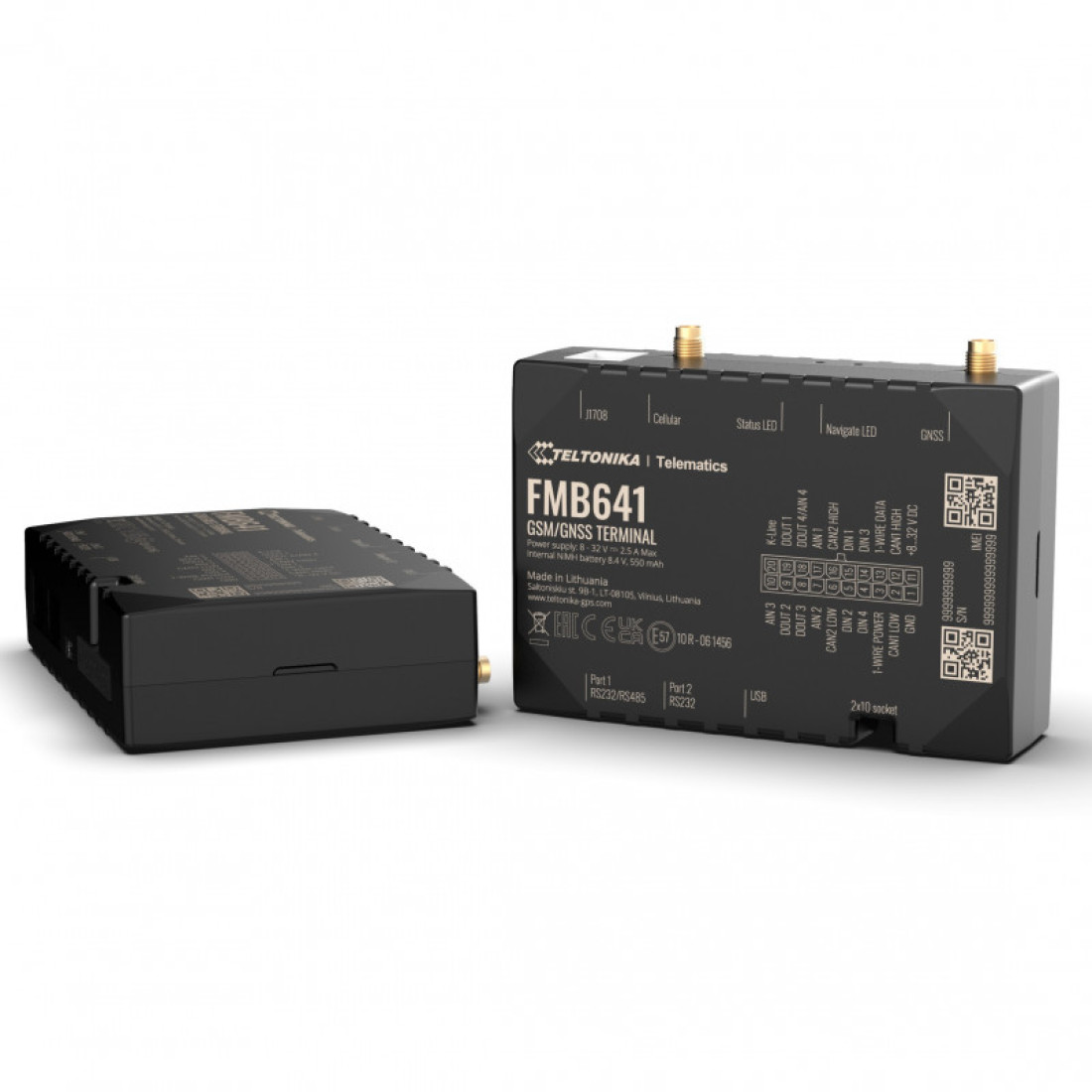

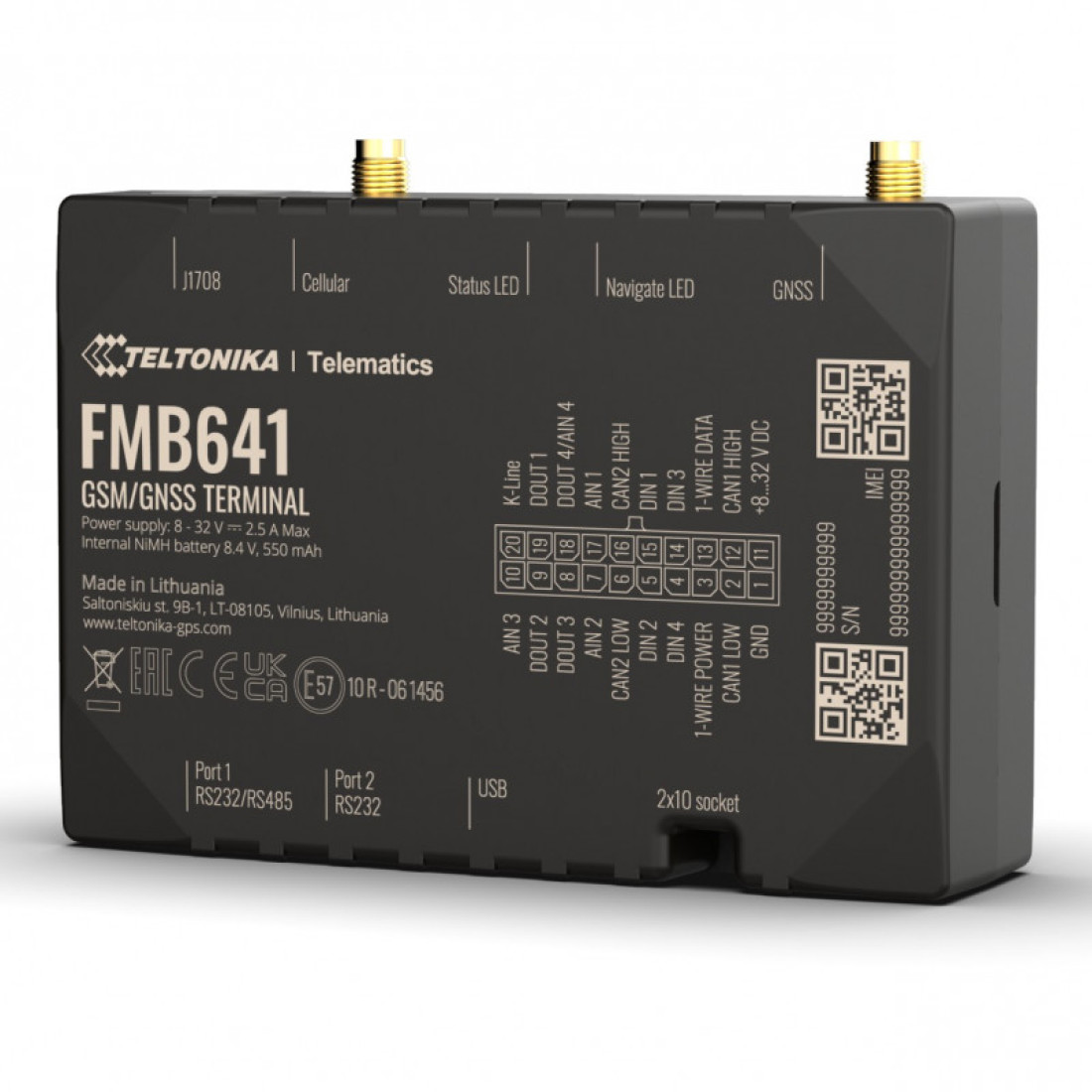

Professional GPS Tracker Teltonika FMB641 with CAN and Dual SIM

Technical specifications

• Interface
  Digital Inputs: 4
• Digital Outputs
  4
• Analog Inputs
  4; 1-Wire; 1
• GNSS Antenna
  High Gain External
• Cellular Antenna
  High Gain External
• RS232
  2
• USB
  2.0 Mini-USB - the device can be powered by USB for easier device setup
• LED indication
  2 LED Status Indicators
• RS485
  1
• CAN J1939
  2
• SIM
  2 SIM cards (Dual-SIM) or 1x eSIM
• J1708
  1
• Memory
  2MB internal flash and up to 32GB external Micro SD card
• K-line
  1
• Weight
  197
• Height
  104.5
• Length
  76.8
• Switchable CAN terminals
  CAN1 and CAN2 lines are supported
• Power supply
  Input voltage range: 8-32 VDC with overvoltage protection and reverse polarity
• Dimensions
  76.8 x 29.2 x 104.5 mm
• Operating conditions / Housing
  Operating temperature (without battery): -40 °C to +85 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP41
• Built-in backup battery
  Nickel Metal Hydride battery capacity 550 mAh, 8.4 V; At 12 V < 7 mA (deep sleep); At 12 V < 12 mA (deep sleep); At 12 V < 28 mA (GPS sleep); At 12 V < 65 mA (nominal); At 12 V < 120 mA (GPRS)
• Battery Storage Temperature
  from -20 °C to +45 °C
• Width
  29.2
• Supported Peripherals
  RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, pressure sensor in tires Continental
• GNSS / Connectivity
  Monitoring of 33/99 channels of data collection; Sensitivity -165 dBm; Hot start <1 s; Warm start < 25 s; Cold start < 35 s; NMEA-183 protocol; GPS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS; Accuracy < 3 m
• Storage temperature (with battery)
  from -20 °C to +45 °C
• Network
  Bands 2G quad-band 800/850/900/1900 MHz; Class B GPRS mobile station; GPRS Multi-Slot class 12 (up to 240 kbit/s); SMS text, data
• Module
  Name: Teltonika TM2500
• Technology
  GSM / GPRS / GNSS
• Certification
  Standards: CE/RED, EAC, RoHS, E-Mark
• Features
  Sensors: Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep
• Configuration and firmware update
  FOTA Web, FOTA, Teltonika Configurator
• SMS
  Configuration, Events, DOUT Management, Debugging
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital Input, Accelerometer, External Power
• Scenarios
  Eco Driving, Overspeed Detection, Fuel Meter GNSS, DOUT Call Control, Excessive Idle Detection, Immobilizer, IButton Read Notification, Mains Disconnection Detection, Towing Detection, Accident Detection, Automatic Geofencing, Manual and Online Tacho Data, Standalone Tracking
• Fuel Monitoring
  LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), Ultrasonic Level Sensor
• RS232 modes
  Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, ASCII/Binary TCP, ASCII/Binary (buffered), Rec to LCD, Atoll Tachograph, UL202-2 Fuel Sensor, Iridium Edge Satellite Backup, Refrigerator.
• RS485 modes
  Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
