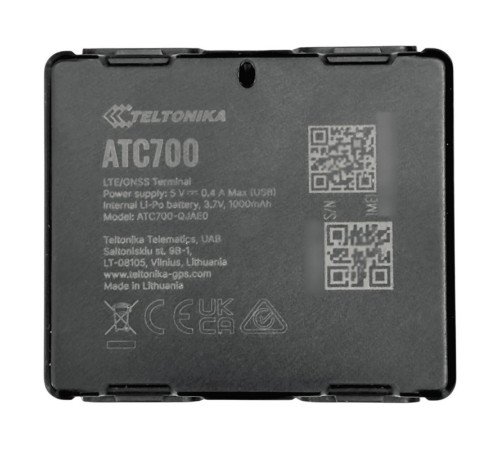

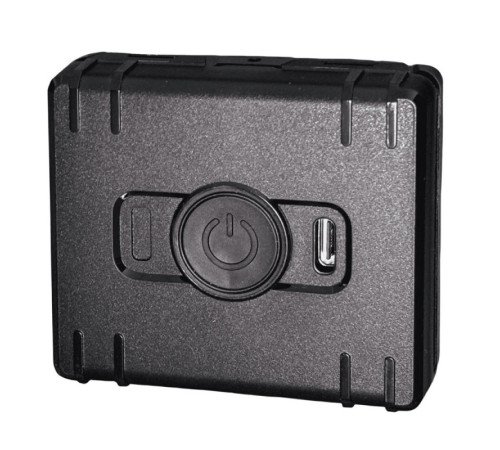

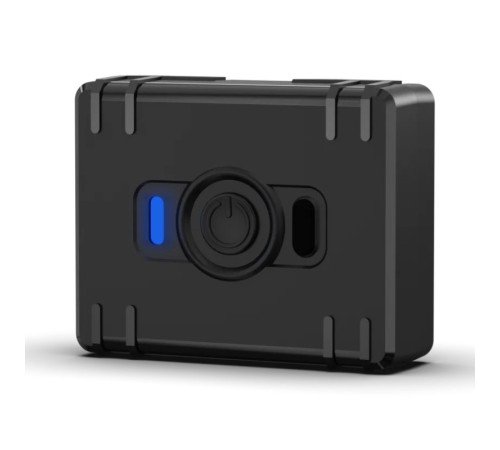

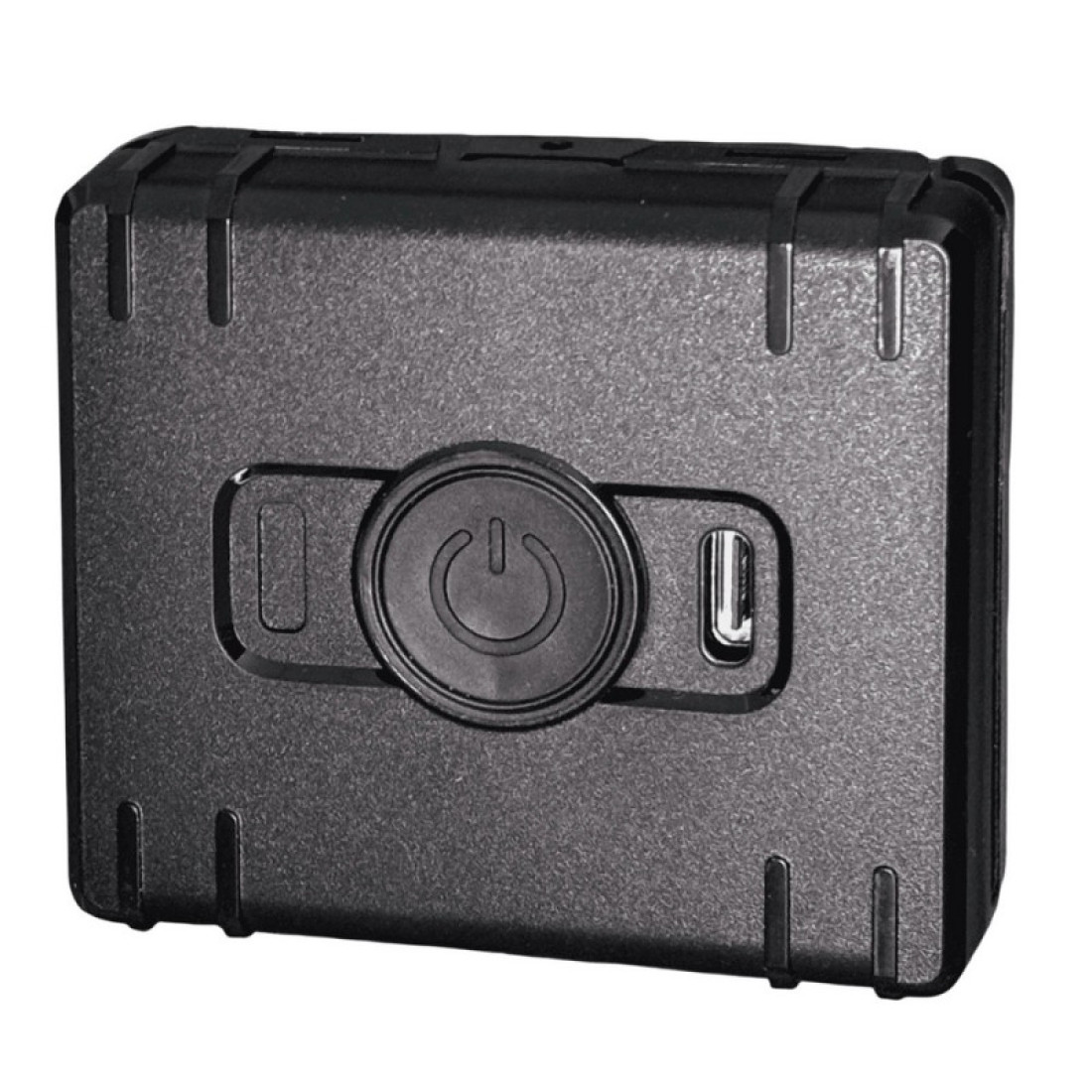

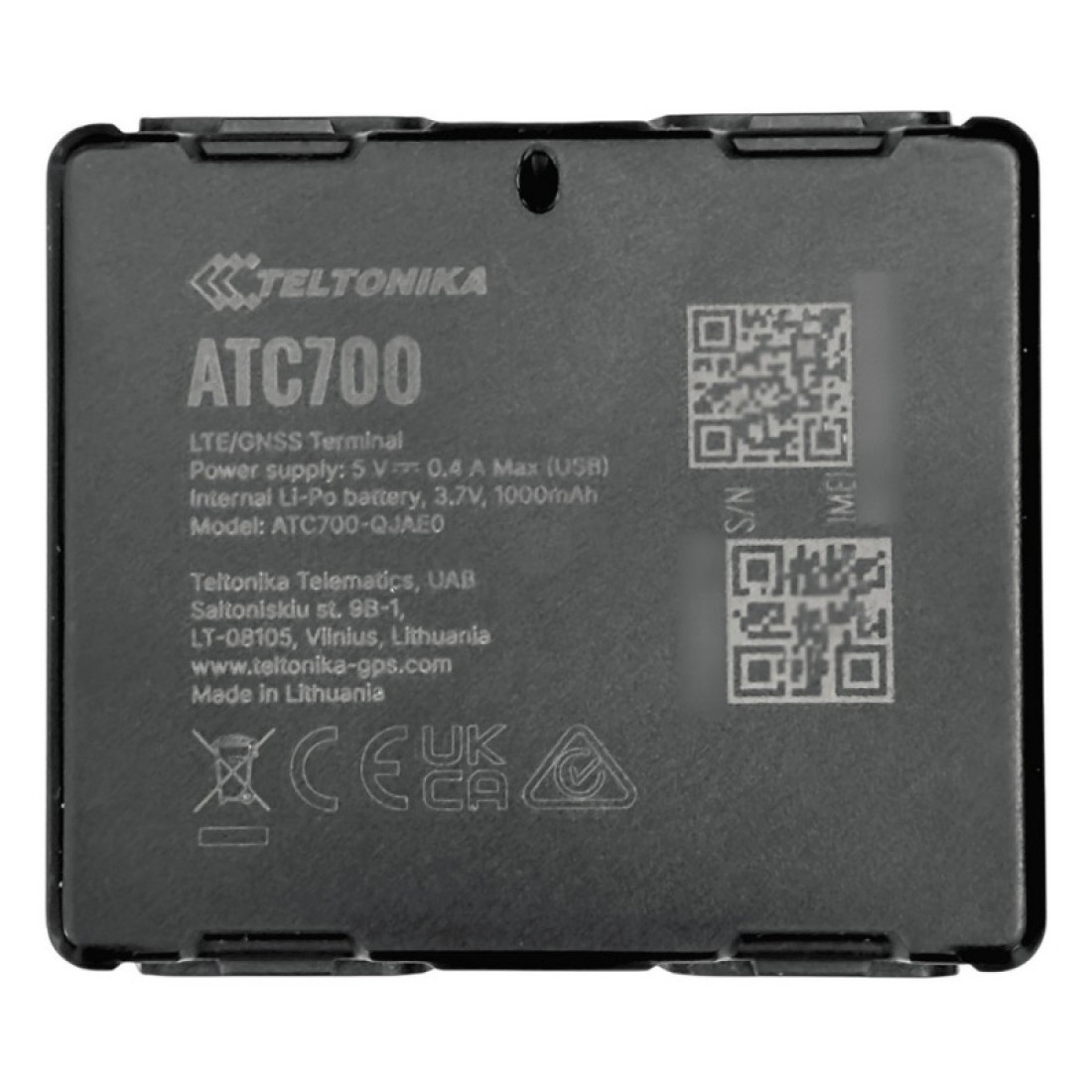

Teltonika ATC700 Personal GPS Tracker with Autonomy
Teltonika ATC700 Personal GPS Tracker with Autonomy
text_total_savings 0
Payment
Account
Cash
Shipping
Courier
Teltonika ATC700 personal GPS tracker is a stand-alone solution for tracking assets and personnel in difficult environments. The model helps to monitor the location, security, events and operation of mobile teams online in eQuGPS.
How GPS monitoring works
Mobile network
Data is transmitted via the mobile network to the eQuGPS Tracking System.
02
Platform
The platform stores the received data and generates routes, events, reports, and notifications.
03
Application
The user sees information in the web account and mobile application.
04
How does the eQuGPS system work?
During an unstable GPS signal or operation of electronic warfare equipment, anomalous coordinates may appear.
eQuGPS Tracking System analyzes the received points and filters out obviously incorrect values, reducing false route jumps.
Module
- NameATC700-QJAE0: EG915U-EU
- TechnologyLTE CAT 1/GSM/GPRS/GNSS
GNSS
- Receiver135 tracking/acquisition channels
- GNSS receiver sensitivity-165 dBM
- Positioning accuracy< 1.8 m CEP
- Hot start< 1 s
- Warm start< 25 s
Cellular communication
- TechnologiesLTE CAT 1/GSM
- 2G bandsATC700-QJAE0: GSM: B2/B3/B5/B8 ATC700-QKAE0: GSM: B2/B3/B5/B8 4G LTE bands
- Data transferLTE FDD (CAT 1): Max. 10 Mbps (DL)/Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL)/Max. 85.6 Kbps (UL)
- Transmission powerClass 4 for GSM850/900: 33±4dBM
- Data supportSMS (TEXT, PDU), Network protocols (TCP, UDP)
Data codec
- New attribute_391Codec 8 Extended
Physical characteristics
- Dimensions62.2 x 54.2 x 20.3 mm (L x W x H)
- Weight71 g
Interface
- Cellular antennaInternal High Gain
- GNSS antennaInternal High Gain
- LED indication1 status RGB LED light SIM
- Memory128MB internal flash memory
- SIMNano-SIM
- USB2.0 USB Type-C
Operating environment
- Battery charge temperature0°C to +45°C
- Ingress Protection RatingIP65* *(internally tested, not certified). IP68 - in development.
- Operating humidity5% to 95% non-condensing Ingress Protection Rating IP65*
- Storage temperature (with battery)-10 °C to +25 °C for 1 month 0 °C to +25 °C for longer than 3 months
Features
- Configuration and firmware updateFOTA WEB, Teltonika Configuration Tool (TCT)
- GPRS commandsConfiguration, Debug
- ScenariosMovement-based tracking, Periodic tracking, Scheduler, Alarm button, Power bank support, Configurable LED indication
- SensorsAccelerometer
- Sleep modesOnline sleep, Power off sleep Configuration and firmware update FOTA WEB, Teltonika Configuration Tool (TCT)
- SMSConfiguration, Debug
- Time SynchronizationGNSS, NITZ, NTP
Certification and confirmation
- RegulatoryCE RED, UKCA, E-Mark, RCM
