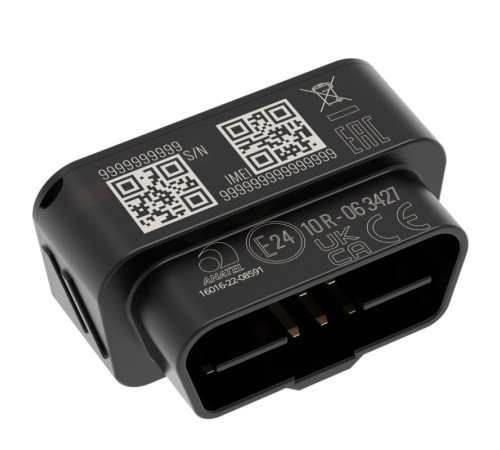

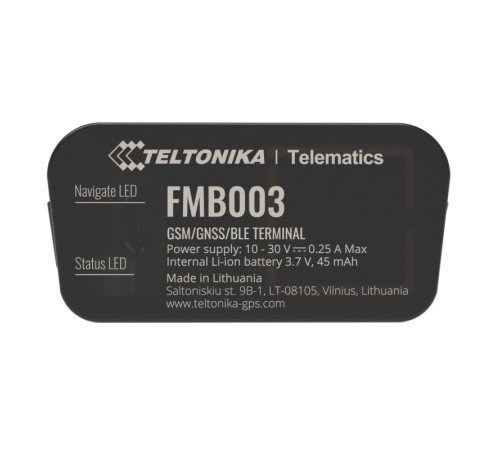

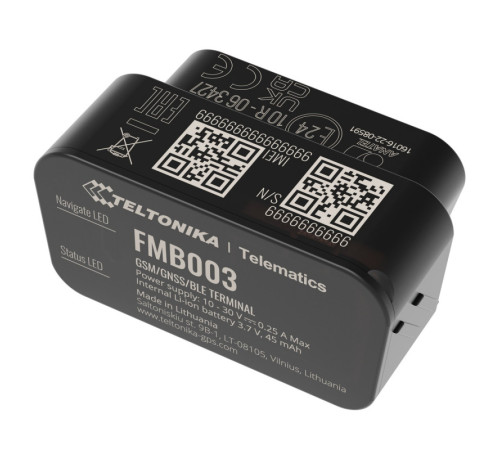

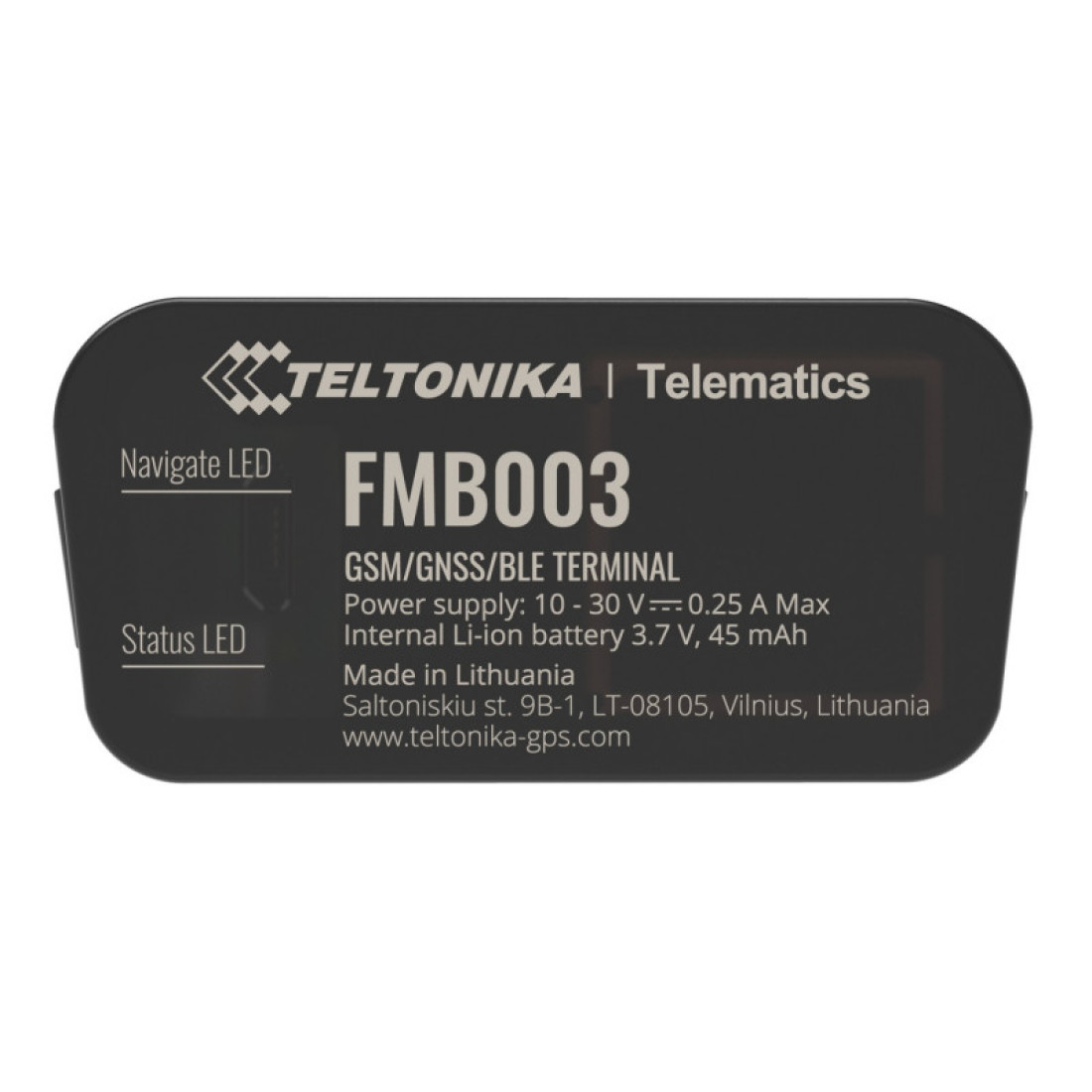

Teltonika FMB003 OBD GPS Tracker for reading OEM data

Technical specifications

• Interface
  Connection OBDII Socket; GNSS antenna Internal High Gain; Cellular antenna Internal High Gain; USB 2.0 Micro-USB; LED indication 2 status LED lights; SIM Nano-SIM; Memory 128MB internal flash memory
• Weight
  30
• Height
  26
• Length
  52.6
• Power supply
  Data - K-Line, CAN bus data; ISO 9141-2 (5 baud init, 10.4 kbaud); ISO 14230-4 KWP (5 baud init, 10.4 kbaud); ISO 14230-4 KWP (fast init, 10.4 kbaud); ISO 15765-4 CAN (11 bit ID, 250 kbaud); ISO 15765-4 CAN (11 bit ID, 500 kbaud); ISO 15765-4 CAN (29 bit ID, 250 kbaud); ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• Dimensions
  52.6 x 29.1 x 26 mm
• Operating conditions / Housing
  Operating temperature (without battery) -40 °C to +85 °C; Storage temperature (without battery) -40 °C to +85 °C; Operating humidity 5% to 95% non-condensing; Ingress Protection Rating IP41; Battery charge temperature +10 °C to +45 °C; Battery discharge temperature -20 °C to +60 °C; Battery storage temperature -20 °C to +45 °C for 1 month; 20 °C to +35 °C for 6 months
• Width
  29.1
• Bluetooth
  Specification 4.0 + LE; Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
• GNSS / Connectivity
  GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS; Receiver 33 channels; Tracking sensitivity -165 dBM; Accuracy < 2.5m CEP; Hot start < 1 s; Warm start < 25 s; Cold start < 35 s; Technology GSM; 2G bands Quad-band 850 / 900 / 1800 / 1900 MHz; Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps); Data support SMS (text/data)
• Data Exchange
  GPRS Multi-Slot Class 12 (up to 240 kbit/s)
• Network
  Technology: GSM
• 2G Bands
  Quad-band module 850/900/1800/1900 MHz
• Data Support
  SMS (text/data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, UKCA, E-Mark, EAC, RoHS, REACH, SIRIM QAS, Anatel, SDPPI POSTEL
• Features
  Sensors Accelerometer; Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip; Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep; Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration); SMS Configuration, Events, Debug; GPRS commands Configuration, Debug; Time Synchronization GPS, NITZ, NTP; Fuel monitoring OBD II; Ignition detection Accelerometer, External Power Voltage, Engine RPM
