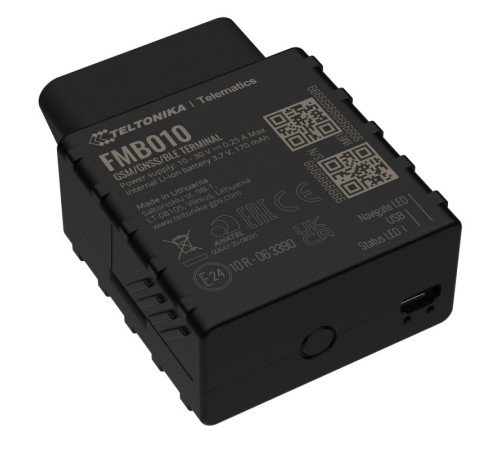

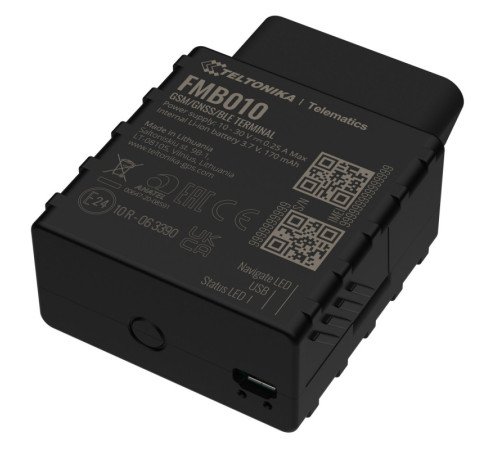

Teltonika FMB010 OBD GPS Tracker for Easy Connect

Technical specifications

• Interface
  Digital inputs 1; OBD connector connection; GNSS antenna is internal; GSM antenna is internal; USB 2.0 Micro-USB; LED indication 2 LED status indicators; SIM Micro-SIM; Memory 128 MB internal memory
• Weight
  63
• Height
  50.7
• Length
  25
• Power supply
  Normal operation 10 - 30 V DC with surge protection; Power consumption 170 mAh Li-Ion battery 3.7 V (0.63 Wh); Power consumption At 12V <5 mA (Ultra Deep Sleep Mode); At 12V <7 mA (Deep sleep mode); At 12V <7 mA (Fast Online Mode); At 12V <8 mA (GPS sleep mode); At 12V <28 mA (Nominal)
• Dimensions
  25 x 49.6 x 50.7 mm
• Operating conditions / Housing
  Operating temperature (without battery) -25 ° C to +55 ° C; Storage temperature (without battery) -40 ° C to +70 ° C; Relative humidity during operation 5% to 95% without condensation; Degree of protection against penetration IP41; Battery charging temperature 0 ° C to +45 ° C; Battery discharge temperature -20 ° C to +60 ° C; Battery storage temperature -20 ° C to +45 ° C for 1 month; 20 ° C to +35 ° C 6 months
• Scenarios Safe Driving, Speeding, GSM Signal Blocking Alert, GPS
  idling, Disconnection detection, Car towing detection, Road accident detection, Auto geofence, geofence, Trip notification; Sleep modes: GPS Sleep Mode, Online Sleep Mode, Deep Sleep Mode, Ultra Deep Sleep Mode; Updating the configuration and firmware of FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configurator); SMS Configuration, Events, Control of digital outputs, Debugging; GPRS commands Configuration, Control of digital outputs, Debugging; GPS, NITZ, NTP time synchronization; Ignition detection Digital input, Accelerometer, Supply voltage
• Width
  49.6
• Bluetooth
  Specification 4.0 + LE; Supported peripherals Temperature and humidity sensor, Headphones, OBDII dongle, Inateck Barcode scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS; Channel 33 receiver; The sensitivity of the GNSS receiver is -165 dBm; Accuracy <3 m; Hot start <1 c; Warm start <25 c; Cold start <35 c
• Network
  2G frequency bands Quad-band module 850/900/1800/1900 MHz; GPRS class 12 data transmission (up to 240 kbps), GPRS Mobile station class B; SMS data support (text / data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, E-Mark, EAC, RoHS, REACH, Anatel, SIRIM QAS
• Features
  Sensors Accelerometer
