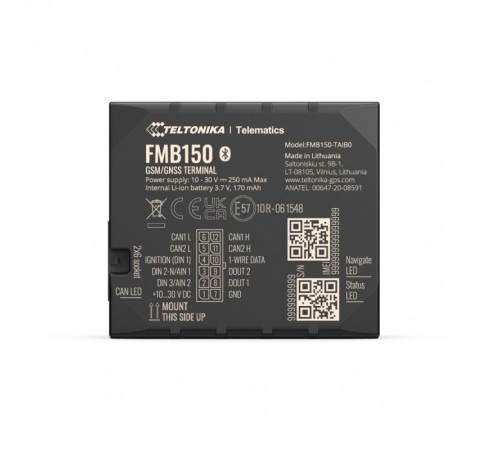

Teltonika FMB150 GPS Tracker with CAN Bus for Fleet

Technical specifications

• Interface
  Digital Inputs: 3
• Digital Outputs
  2
• Negative inputs
  1 (digital input 2)
• Analog Inputs
  2
• Pulse inputs
  2 (Digital Input 1, Digital Input 2)
• 1-Wire
  1
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• USB
  2.0 Micro-USB
• CAN interfaces
  2
• LED indication
  3
• SIM
  Micro-SIM or eSIM
• Memory
  Internal Flash Memory 128MB
• Weight
  55
• Height
  20.6
• Length
  65
• Power supply
  Input voltage range: 10-30VDC with overvoltage and reverse polarity protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Dimensions
  65 x 56.6 x 20.6 mm
• Operating conditions / Housing
  Operating temperature (without battery): -40 to +85 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP41
• Battery charge temperature
  from 0 to +45 °С
• Battery discharge temperature
  from -20 to +60 °С
• Power
  At 12V < 6mA (Ultra Deep Sleep); At 12V < 8mA (Deep Sleep); At 12V < 11mA (Online Deep Sleep); At 12V < 20mA (GPS Sleep); At 12V < 35 mA (Nominal with no load); At 12V < 1.5 A Max. (With full Load / Peak)
• Battery Temperature
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Width
  56.6
• Bluetooth
  Specification: 4.0+LE
• Supported Peripherals
  Temperature and Humidity Sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver
  33 channel
• Location Accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  GPRS Multi-Slot Class 12 (up to 240 kbit/s), Class B GPRS mobile station
• Network
  Technology: GSM
• 2G Bands
  Quad-band module 850/900/1800/1900 MHz
• Data Support
  SMS (text/data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE-RED, E-mark, Reach, RoHS, Anatel
• Features
  CAN Data: Fuel level (dashboard), Total consumption of fuel, Vehicle speed (wheel), Vehicle distance traveled, Engine speed (rpm), Accelerator pedal position
• Sensors
  Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• SMS
  Configuration, Events, DOUT Management, Debugging
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital Input 1, Accelerometer, External Supply Voltage, Motor RPM
• Scenarios
  Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
