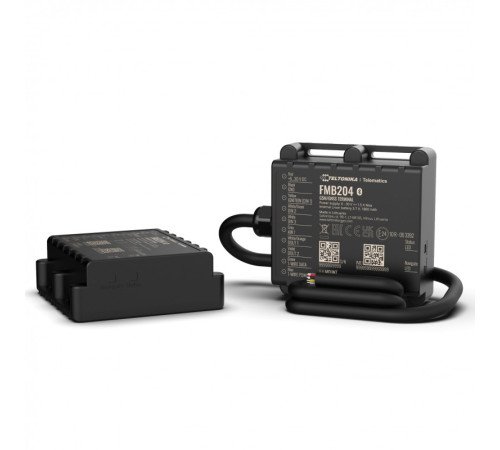

Teltonika FMB204 Waterproof GPS Tracker with Backup Battery

Technical specifications

• Interface
  3 digital inputs (1 reserved for ignition status monitoring); Configurable analog input (10V or 30V range) or DIN4; 2 digital outputs with an open collector (connection of external relays, LEDs, buzzers, etc.); 1-Wire (iButton, RFID, temperature sensors); Built-in accelerometer; Power supply (+ 6... + 30) V; Waterproof (IP67) housing; Internal high-gain GSM antenna; Internal High Gain GNSS Antenna
• Weight
  205
• Data transfer
  GPRS class 12 (up to 240 kbps)
• Height
  27.3
• Length
  72.5
• Power supply
  Input voltage range: 6-30V DC with surge protection
• Dimensions
  L (72.5mm) xW (73mm) xH (27.3mm); Built-in lithium-ion backup battery 1800mAh; 2 LEDs of the status of the device; Micro USB port, 72.5 x 73 x 27.3 mm
• Operating conditions / Housing
  Operating temperature (without battery): from -40 °C to +85 °C
• Storage temperature (without battery)
  from -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP67
• Battery charge temperature
  from 0 °C to +45 °C
• Battery discharge temperature
  from -20°С to +70°С
• Built-in backup battery
  1800mAh Li-ion battery, 3.7 V (6.66 Wtg); 70V — maximum voltage; 120V — maximum voltage for 10 ms
• Battery Storage Temperature
  from -10°С to +45°С
• Width
  73
• Bluetooth
  Voice calls via Bluetooth; Configuration and firmware update via Bluetooth; Bluetooth sensors; OBD2 reader
• GNSS / Connectivity
  33-channel GNSS receiver 165 dBm sensitivity; Hot start <1s; Warm start <25s; Cold start <35s; NMEA 183 protocol; GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS; Coordinate determination error <3 m
• Network
  Frequency range: 900/1800 MHz, 850/1900 MHz
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, Pulse 5a, E-Mark, EAC, RoHS, REACH, SIRIM QAS
• Features
  1-wire interface support allows driver identification and connection of up to 4 temperature sensors. With iButton or RFID, you can prevent unauthorized access to your vehicle or identify the driver at any time. Temperature sensors also allow thermal monitoring of your cargo.; High-quality track even in high-density urban areas;; Ready for use in harsh environments;; The periods of data collection and sending are configured;; Setting geofences;; Sleep mode;; Deep sleep mode;; Voice calls via Bluetooth;; Process monitoring in real time;; Authorized list of numbers for remote access by SMS;; Firmware update via GPRS (FOTA WEB) or USB port;; Configuration update via GPRS (FOTA WEB), SMS or USB port;; TCP / IP or UDP / IP protocol support;; 128 Mb of internal memory;
