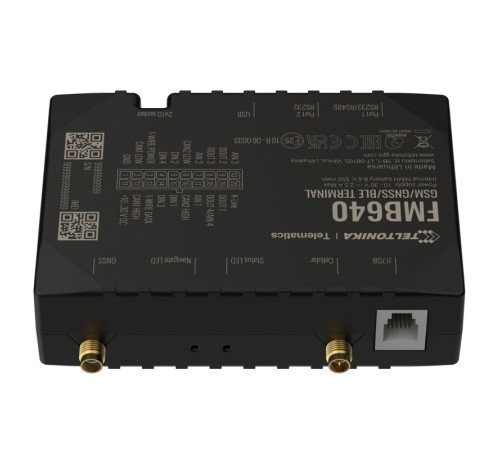

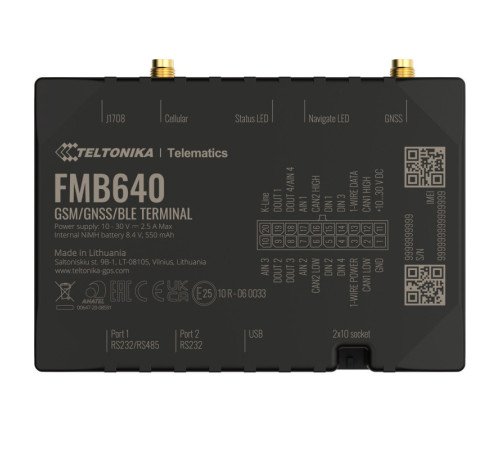

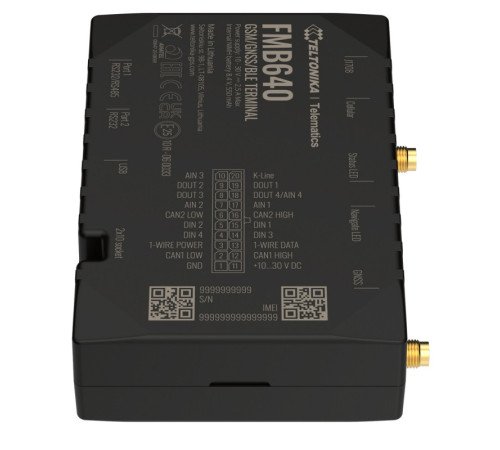

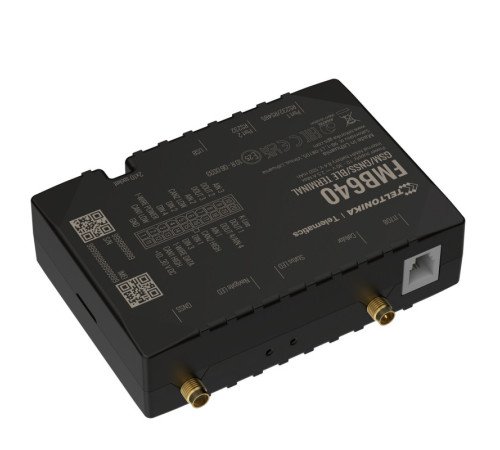

Teltonika FMB640 Professional GPS Tracker with CAN and Tachograph

Technical specifications

• Interface
  Digital inputs 4; Digital outputs 4; Analog inputs 4; 1-Wire 1; RS232 2; RS485 1; CAN J1939 2; J1708 1; K-line 1; GNSS antenna is external with high gain; The GSM antenna is external with a high amplification factor; USB 2.0 Mini-USB; Indication of 2 LED status indicators; SIM card 2x SIM card (Dual-SIM); Memory 2MB internal flash memory and support for external Micro SD card up to 32GB
• Weight
  197
• Height
  104.1
• Length
  31.5
• Power supply
  Normal operation 10 - 30 VDC with surge protection; Backup battery 550 mAh Ni-Mh, 8.4 V battery; Power consumption at 12 V <7 mA (deep sleep); At 12 V <12 mA (deep sleep online); At 12 V <28 mA (GPS sleep); At 12 V <65 mA (nominal value); At 12 V <120 mA (GPRS)
• Dimensions
  31.5 x 76.8 x 104.1 mm
• Operating conditions / Housing
  Operating temperature (Without battery) -40 ° C to +85 ° C; Storage temperature (without battery) from -40 ° C to +85 ° C; Relative humidity for operation from 5% to 95% without condensation; Battery storage temperature from -20 ° C to + 45 ° C; Degree of protection against penetration IP41
• Width
  76.8
• GNSS / Connectivity
  GNSS GPS, GLONASS, GALILEO, Beidou, SBAS, QZSS, DGPS; Receiver 33/99 data collection channels; Receiver sensitivity -165 dBm; Accuracy <3 m; Hot start <1 c; Warm start <25 c; Cold start <35 c
• Network
  2G bands Quad-band module 850/900/1800/1900 MHz; GPRS GPRS mobile station class B; Data transfer GPRS Multi-Slot Class 12 (up to 240 kbit / s); SMS data support (text / data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM / GPRS / GNSS
• Certification
  Standards: CE/RED, EAC, RoHS, E-Mark, REACH, Anatel, SIRIM QAS
• Features
  Sensors Accelerometer; Scenarios Green / Eco Driving, Speeding Detection, GSM Signal Loss Detection, Excessive Idling Detection, Towing Detection, Accident Detection, Immobilizer, iButton Reading Notification, Auto Geofencing, Manual Geofencing, Trip Detection, Odometer, Fuel Meter, GNSS Outage Detection, DDD and Tacho Online Data Download, Autonomous tracking, voice call; Supported peripheral devices RFID RS232, 1-Wire RFID, 1-Wire iButton, 1-Wire temperature, Continental tire pressure sensor; Sleep modes GPS sleep, Online deep sleep, Deep sleep; Configuration and firmware update of FOTA Web, FOTA, Teltonika Configurator; SMS Configuration, Events, DOUT Management, Debugging; GPRS commands Configuration, DOUT control, debugging; GPS, NITZ, NTP time synchronization; Fuel control LLS (analog), digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), ultrasonic level sensor; Ignition detection digital input, accelerometer, external power supply voltage; RS232 modes Log mode, NMEA, LLS, LCD display, RFID HID / MF7, FMI Garmin, TCP ASCII / Binary, TCP ASCII / Binary (buffered), LCD recording, Atol tachograph, UL202-2 fuel sensor, TSM232 satellite backup, Freezer; Modes RS485 Silent, Log mode, NMEA, LLS, TCP ASCII / Binary, TCP ASCII / Binary (buffered)
