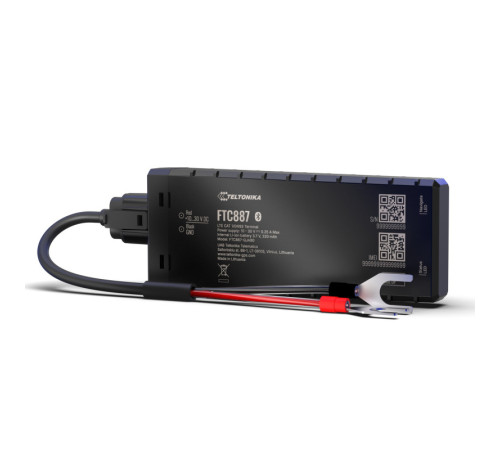

Teltonika FTC887 4G GPS tracker for quick installation

Module

• Name
  FTC887-QJAB0: Quectel EG915U-EU with AG3335
• Technology
  LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE

Technical specifications

• Firmware configuration and update
  FOTA WEB, Teltonika Configuration Tool (TCT)

GNSS

• Speed accuracy
  < 0.1 m/s (within +/- 15% error)
• Receiver
  L1: 75 channel
• GNSS receiver sensitivity
  -165 dBM
• Positioning accuracy
  < 1.8m CEP
• Hot start
  < 1 s
• Warm start
  < 25 s
• Cold start
  < 35 s

Cellular communication

• Technologies
  LTE CAT 1/GSM
• 2G bands
  FTC887-QJAB0: GSM: B2/B3/B5/B8
• 4G bands
  FTC887-QJAB0: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28
• Data transfer
  LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
• Transmission power
  Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM
• Data support
  SMS (TEXT, PDU), Network protocols (TCP, UDP)

Data codec

• New attribute_391
  Codec 8 Extended

Power

• Backup battery
  320 mAh Li-Ion battery 3.7V (1.18 Wh)
• Energy consumption
  At 12V < 32.978mA Normal mode At 12V < 10.019mA Online Deep Sleep mode At 12V < 8.765mA Deep Sleep mode At 12V < 3.943mA Power off Sleep
• Input voltage range
  10-30 V DC
• Internal fuse
  3 A, 125V

BLUETOOTH® technology

• Specification
  5.3 + LE*

Physical characteristics

• Dimensions
  118 x 48 x 18.5 mm (L x W x H)
• Weight
  118 g

Interface

• Cellular antenna
  Internal High Gain
• Connection
  U-Type cable
• GNSS antenna
  Internal High Gain
• LED indication
  2 status LED lights
• Memory
  128MB internal flash memory
• SIM
  Nano-SIM
• USB
  2.0 USB Type-C

Operating environment

• Battery charge temperature
  0 °C to +45 °C
• Battery discharge temperature
  -20 °C to +60 °C
• Ingress Protection Rating
  IP69K
• Operating humidity
  5% to 95% non-condensing
• Operating temperature (with battery)
  0 °C to +40 °C
• Operating temperature (without battery)
  -40 °C to +85 °C
• Storage temperature (with battery)
  -20 °C to +60 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Battery storage conditions
  -10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 1 year

Features

• Ignition ON detection
  Accelerometer, External Power Voltage
• Scenarios
  Eco Driving, Over Speeding Detection, Excessive Idling Detection, Crash Detection, Trip, Odometer, Private/Business Mode, Unplug Detection, Network Jamming Detection, Towing Detection, Auto Geofence, Manual Geofence, Fall Down Detection, Custom Scenarios, Static Navigation, Ignition On Counter
• Sensors
  Accelerometer and Gyroscope
• Sleep modes
  Deep Sleep, Online Sleep, Power Off Sleep
• SMS
  Configuration, Debug
• Time Synchronization
  GNSS, NITZ, NTP

Certification and confirmation

• Brand / Manufacturer
  Teltonika
• Regulatory
  CE/RED, UKCA, E-Mark, RoHS, REACH, RCM
• Seller
  eQuGPS
