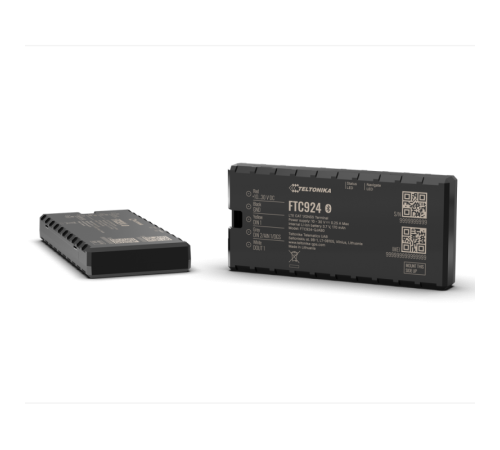

Teltonika FTC924 Compact 4G GPS Tracker with Accurate GNSS
Teltonika Compact 4G GPS Tracker FTC924 with accurate GNSS
text_total_savings 0
Payment
Account
Cash
Shipping
Courier
The Teltonika FTC924 compact 4G GPS tracker with an accurate GNSS module is designed for modern transport monitoring. The model helps to monitor the location, routes, events, trips and efficiency of the fleet in eQuGPS.
How GPS monitoring works
Mobile network
Data is transmitted via the mobile network to the eQuGPS Tracking System.
02
Platform
The platform stores the received data and generates routes, events, reports, and notifications.
03
Application
The user sees information in the web account and mobile application.
04
How does the eQuGPS system work?
During an unstable GPS signal or operation of electronic warfare equipment, anomalous coordinates may appear.
eQuGPS Tracking System analyzes the received points and filters out obviously incorrect values, reducing false route jumps.
Module
- NameFTC924-QJAB0: Quectel EG915U-EU with AG3335
- TechnologyLTE CAT 1/GSM/GPRS/GNSS
GNSS
- Speed accuracy< 0.1 m/s (within +/- 15% error)
- ReceiverL1: 75 channel
- GNSS receiver sensitivity-165 dBM
- Positioning accuracy< 1.8 m CEP
- Hot start< 1 s
- Warm start< 25 s
Cellular communication
- TechnologiesLTE CAT 1/GSM
- 2G bandsFTC924-QJAB0: GSM: B2/B3/B5/B8 FTC924-QKAB0: GSM: B2/B3/B5/B8 4G LTE bands
- Data transferLTE FDD (CAT 1): Max. 10 Mbps (DL)/Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL)/Max. 85.6 Kbps (UL)
- Transmission powerClass 4 for GSM850/900: 33 dBm ±2dB
- Data supportSMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)
Data codec
- New attribute_391Codec 8 Extended
Power
- Backup battery170 mAh Li-Ion battery, 3.7 V
- Energy consumptionAt 12V < 25 mA (Nominal with no load) At 12V < 0.25A Max (with full Load/Peak)
- Input voltage range10-30 V DC
- Internal fuse3A, 125V
BLUETOOTH® technology
- Specification5.4 + LE
- Supported peripheralsEYE Beacon and sensor
Physical characteristics
- Dimensions93 x 43 x 12.5 mm (L x W x H)
- Weight65 g
Interface
- Analog Inputs1 Digital ground sense (Digital Input 2)
- Cellular antennaInternal High Gain
- Digital inputs2
- Digital outputs1
- GNSS antennaInternal High Gain
- LED indication2 status LED lights SIM
- Memory128MB internal flash memory
- SIMNano-SIM
- USBUSB 2.0 USB Type-C
Operating environment
- Battery storage temperature-20 °C to +35 °C for 6 months
- Operating humidity5% to 95% non-condensing Battery charge temperature 0 °C to +45 °C Battery storage temperature -20 °C to +35 °C for 6 months
- Operating temperature (with battery)0 °C to +45 °C
- Operating temperature (without battery)-40°C to +85 °C
- Storage temperature (with battery)-20 ℃ to 25 ℃ for up-to 3 months ≤25℃ for long-term storage
- Storage temperature (without battery)-40°C to +85 °C
Features
- Configuration and firmware updateFOTA WEB, Teltonika Configuration Tool (TCT)
- Ignition ON detectionDigital Input 1, Accelerometer, External Power Voltage
- ScenariosOver Speeding Detection, Network Jamming Detection, Unplug Detection, Trip
- SensorsAccelerometer
- Sleep modesOnline sleep, Deep sleep, Power off sleep
- Time SynchronizationGNSS, NITZ, NTP
Certification and confirmation
- RegulatoryTBA
