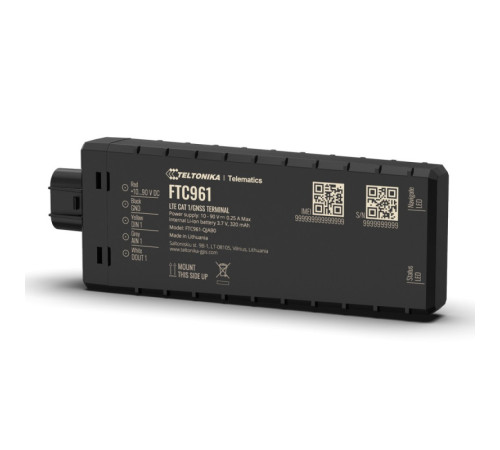

Teltonika FTC961 4G Precision GNSS GPS Tracker

Technical specifications

• Interface
  Digital inputs; 1; Digital outputs; 1; Analog inputs; 1; GNSS antenna; Internal high gain; Cellular antenna; Internal high gain; USB; 2.0 USB Type C; LED indication; 2 LED status indicators; SIM; Nano-SIM; Memory; 128 MB internal flash memory
• Weight
  118
• Height
  18.5
• Length
  118
• LTE FDD (CAT 1)
  B1/B3/B5/B7/B8/B20/B28; Data transfer, Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
• Power supply
  Input voltage range; 10–90 V; Internal backup battery; Lithium-ion battery 320 mAh 3.7 V (1.18 Wh); Internal fuse; 3A, 125B; Power consumption; TBA
• GSM (GPRS)
  max. 85.6 Kbit/s (DL) / Max. 85.6 Kbit/s (UL); Transmission power
• Class 5 for GSM850/900
  30±5 dBM
• Dimensions
  118 x 48 x 18.5 mm
• Class 3 for GSM1800/1900
  29±5 dBM
• Operating conditions / Housing
  Operating temperature (without battery); from -40 °C to +85 °C; Storage temperature (without battery); from -40 °C to +85 °C; Operating temperature (with battery); from -20 °C to +40 °C; Storage temperature (with battery); from -20 °C to +60 °C; Working humidity; From 5% to 95% without condensation; Intrusion protection class; IP69K; Battery charge temperature; from 0 °C to +45 °C; Battery discharge temperature; from -20 °C to +60 °C; Battery storage conditions; 65 ± 20% relative humidity; From -20 °C to +25 °C less than 1 month; from 0 °C to +30 °C for less than 3 months; from +21 °C to +25 °C less than 6 months
• Class 3 for LTE-FDD
  26±5 dBM; Data support; SMS (TEXT, PDU), network protocols (TCP)
• Width
  48
• GNSS / Connectivity
  GNSS; GPS, GLONASS, GALILEO, BEIDOU; Type of reception; 135 tracking/taking channels; Sensitivity tracking; 165 dBm; Position accuracy; < 1.8 m CEP; Speed accuracy; < 0.1 m/s (error +/- 15%); Cold start; < 35 s; Warm start; < 25 s; Hot start; < 1 s
• Network
  bands 2G
• Module
  Model name; FTC961-QJAB0
• Features
  Sensors; Accelerometer; Scenarios; Green driving, speed detection, jam detection, excessive idling detection, disconnection detection, accident detection, trip; Sleep modes; Deep sleep; Firmware configuration and update; FOTA WEB, Teltonika Configuration Tool (TCT); SMS; Configuration, DOUT control, debugging; GPRS commands; Configuration, DOUT control, debugging; Time synchronization; GNSS, NITZ, NTP; Ignition detection; Digital input 1, accelerometer, external power supply voltage
• GSM
  B2/B3/B5/B8; Bands 4G LTE
