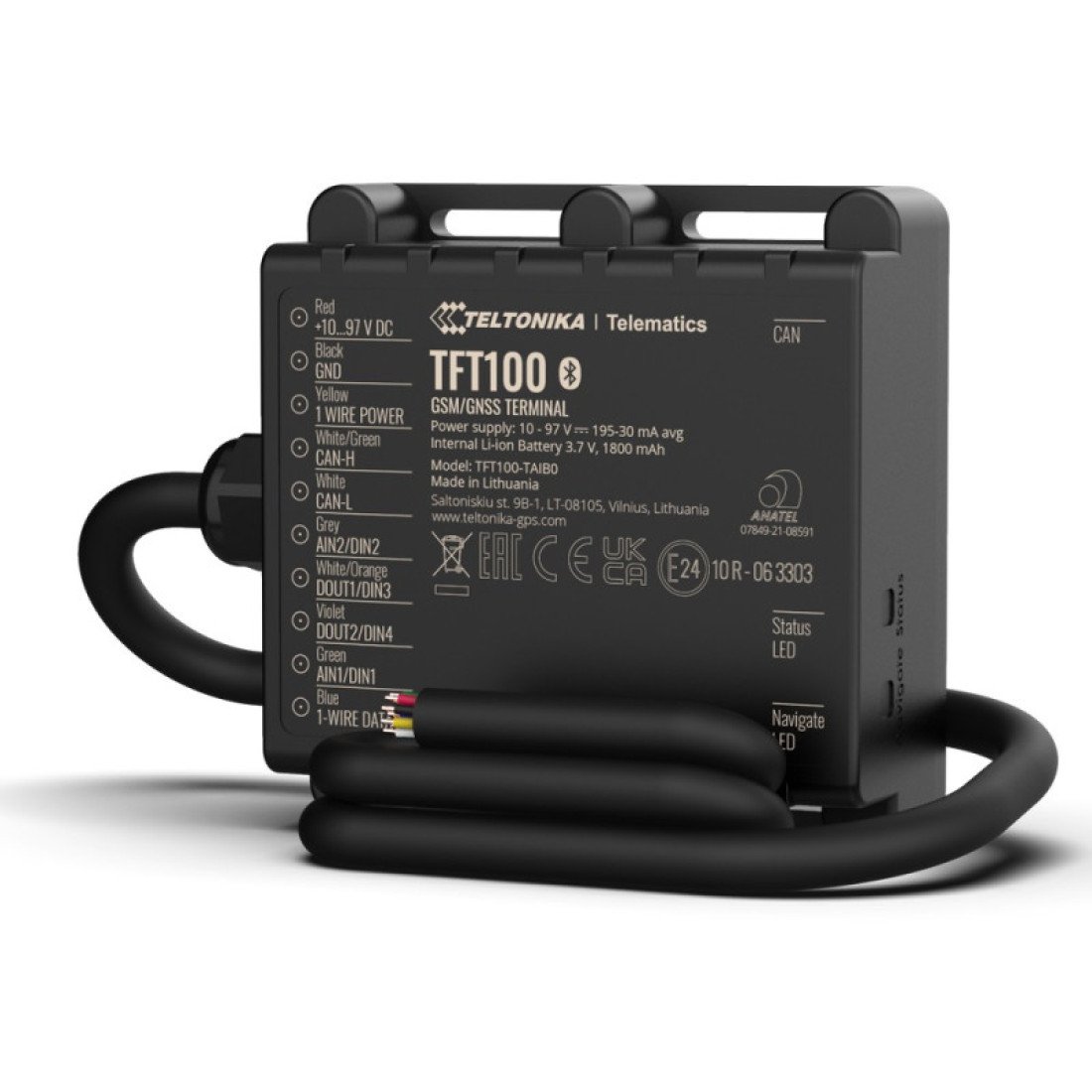

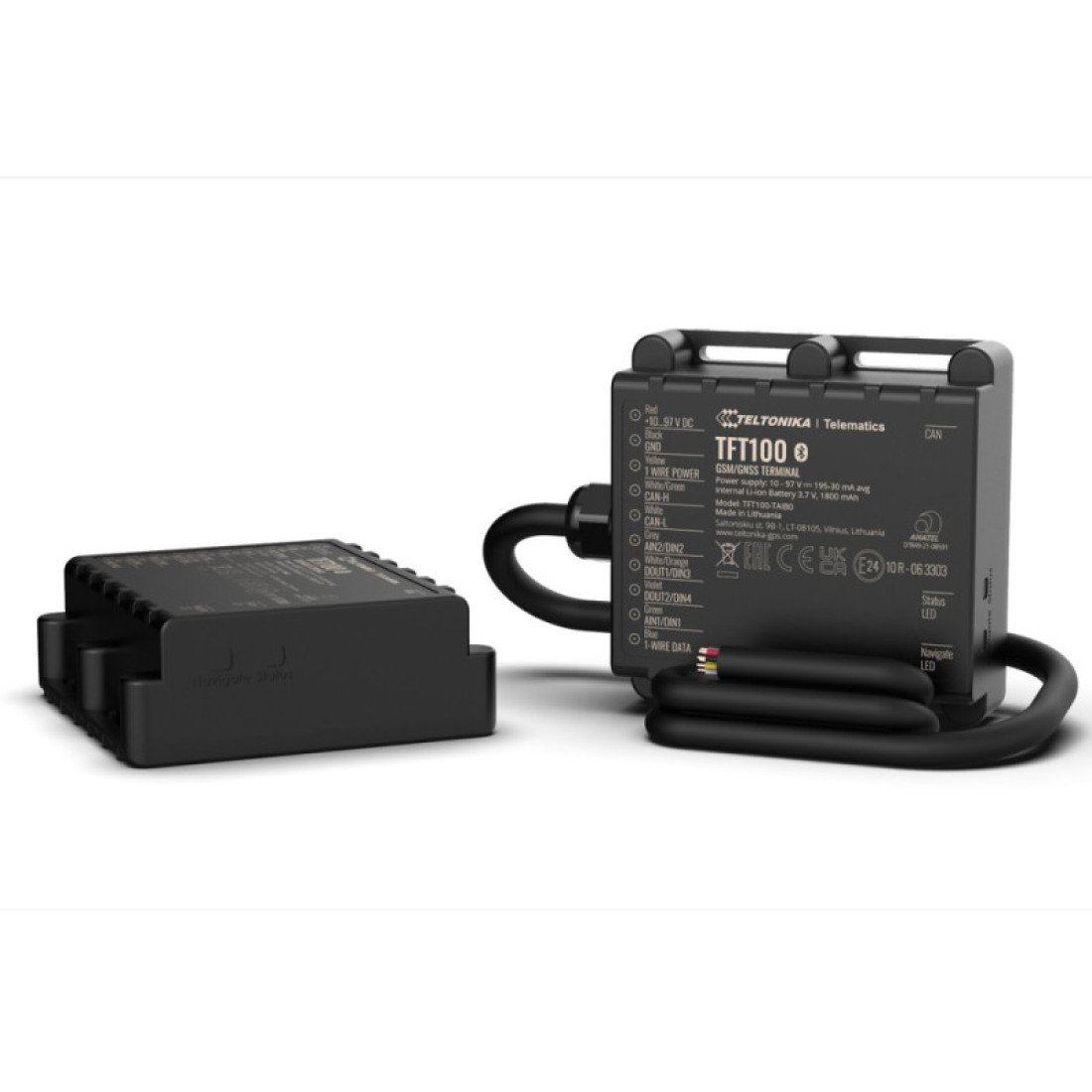

Teltonika TFT100 GPS tracker for electric vehicles and special equipment

Technical specifications

• Interface
  CAN: 1
• Connection
  One modification per device; CAN modification (CAN-H, CAN-L); UART modification (UART-RX, UART-TX); RS232 modification (RS232-IN, RS232-OUT); RS485 modification (RS485-A, RS485-B)
• UART
  1
• GNSS Antenna
  Internal high gain
• Cellular Antenna
  Internal high gain
• RS232
  1
• USB
  2.0 Micro-USB
• 1-Wire data
  1
• RS485
  1
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15%)
• 1-Wire power supply
  1
• SIM
  Micro-SIM
• Analog inputs / Digital inputs
  2
• Memory
  128 MB of internal flash memory
• Digital outputs / Digital inputs
  2
• Weight
  169
• Data transfer
  GPRS Multi-Slot Class 12 (up to 85.6 kbps), GPRS Mobile Station Class B
• Height
  27.3
• Length
  72.5
• Power supply
  Input voltage range: 10-97V
• світлодіодна індикація
  2 LED status indicators
• Internal backup battery
  Li-ion battery 1800 mAh, 3.7 V (6.66 Wh)
• Dimensions
  72.5 x 73 x 27.3 mm (L x W x H)
• Operating conditions / Housing
  Operating temperature (without battery): -20 °C to +75 °C
• Storage temperature (without battery)
  -20 °C to +75 °C
• Operating humidity
  5% to 95% non-condensing
• Battery charge temperature
  from 0 °C to +45 °C
• Battery discharge temperature
  -20 °C to +70 °C
• Battery Storage Temperature
  -10 °C to +45 °C
• Width
  73
• Bluetooth
  Specification: 4.0 + LE
• Intrusion protection class
  IP67
• Supported Peripherals
  ELA sensors, EYE sensors, beacons
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS
• Receiver
  33 tracking channel: 99 acquisition channel
• Hot Start
  < 1 s
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Network
  Technologies: GSM/GPRS
• Sensitivity tracking
  165 dBm
• 2G Bands
  Four bands 850/900/1800/1900 MHz
• Position accuracy
  < 2.5 m CEP
• Data Support
  SMS (text/data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  CE/RED, EAC, E-Mark, Anatel, UKCA, UCRF, Ukrainian RoHS, REACH, E-Mark, IP67
• Features
  Scenarios: Eco/Eco Driving, Overspeeding, Jamming, Excessive Idling, Dropping, Towing Detection, Crash Detection, Auto Geofence, Manual Geofence, Path/Odometer, Immobilizer, iButton, DOUT Control via Call, DOUT Control via Ignition, Last Known Position, Time Stamp Backup copy, manual CAN, manual CAN commands, manual J1939
