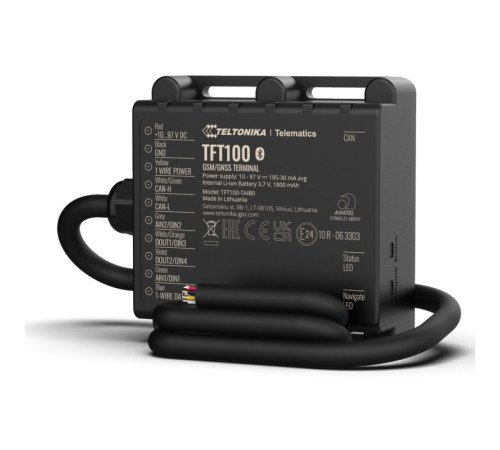

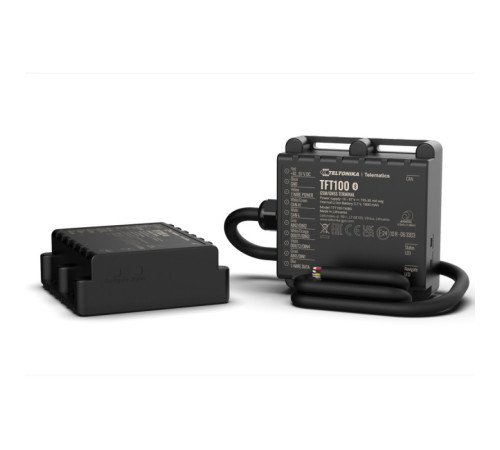

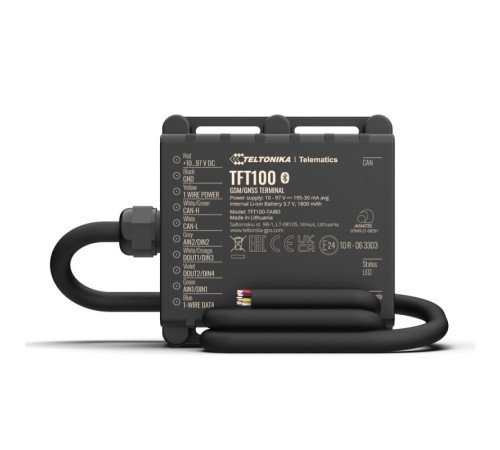

Teltonika TFT100 RS232/RS485 GPS tracker for electric transport

Module

• Name
  Teltonika TM2500
• Technology
  2G(GSM/GPRS)/GNSS/BLUETOOTH® LE

GNSS

• Speed accuracy
  < 0.1 m/s (within +/- 15% error)
• Receiver
  L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
• GNSS receiver sensitivity
  33 tracking channel 99 acquisition channel
• Positioning accuracy
  -165 dBM
• Hot start
  < 1 S
• Warm start
  < 25 S
• Cold start
  < 35 s

Cellular communication

• Technologies
  GSM/GPRS
• Data transfer
  GSM (GPRS): Max. 85.6 Kbps (DL)/Max. 85.6 Kbps (UL)
• Data support
  SMS (TEXT, PDU), Network protocols (TCP,UDP,TLS,DTLS)

Power

• Backup battery
  1800 mAh Li-Ion battery 3.7 V (6.66 Wh)
• Energy consumption
  At 12V (Ultra Deep Sleep) < 8 mA < 8 mA At 12V (Deep Sleep) < 12 mA < 12 mA At 12V (Online Deep Sleep) < 12 mA < 12 mA At 12V (GPS Sleep) < 19.5 mA < 19.5 mA At 12V (Nominal with no load) < 34 mA < 34 mA At 12V (With full load/peak) < 2 A Max < 2 A Max
• Input voltage range
  10 - 97 V DC with overvoltage protection
• Internal fuse
  3.15 A, 125 V

BLUETOOTH® technology

• Specification
  4.0 + LE
• Supported peripherals
  Temperature and Humidity sensor, Universal Bluetooth® LE sensors support

Physical characteristics

• Dimensions
  72.5 x 73 x 27.3 mm (L x W x H)
• Weight
  169 g

Interface

• 1-Wire
  Data 1 1
• Cellular antenna
  Internal High Gain
• GNSS antenna
  Internal High Gain
• LED indication
  2 status LED lights
• Memory
  128MB internal flash memory
• RS232
  1
• RS485
  1
• SIM
  Micro-SIM, eSIM*
• USB
  2.0 Micro-USB

Operating environment

• Battery charge temperature
  0 °C to +45 °C 0 °C to +45 °C Battery discharge temperature -20 °C to +70 °C -20 °C to +70 °C
• Battery discharge temperature
  -20 °C to +70 °C
• Battery storage temperature
  -10 °C to +45 °C
• Ingress Protection Rating
  IP67
• Operating humidity
  5% to 95% non-condensing
• Operating temperature (with battery)
  -20 °C to +60 °C
• Operating temperature (without battery)
  -20 °C to +75 °C
• Storage temperature (with battery)
  -20 °C to +45 °C
• Storage temperature (without battery)
  -20 °C to +75 °C

Features

• Configuration and firmware update
  FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology)
• GPRS commands
  Configuration, Debug
• Ignition ON detection
  Accelerometer, External Power Voltage, DIN1, DIN3, DIN4
• Scenarios
  Eco/Green Driving, Over Speeding, Jamming, Excessive Idling, FallDown, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip/Odometer, Immobilizer, iButton, DOUT control via call, DOUT control via Ignition, Last Known Position, Timestamp Backup, Ignition ON Counter
• Sensors
  Accelerometer
• Sleep modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• SMS
  (TEXT, PDU), Network protocols (TCP,UDP,TLS,DTLS)
• Time Synchronization
  GNSS, NITZ, NTP

Certification and confirmation

• Regulatory
  CE (RED), EAC, E-Mark, Anatel, UKCA, Ukrainian UCRF, RoHS, REACH, IP67
