GPS tracker Teltonika FMB125 Internal with Dual SIM and RS232
GPS tracker Teltonika FMB125 Internal with Dual SIM and RS232
text_total_savings 0
Payment
Account
Cash
Shipping
Courier

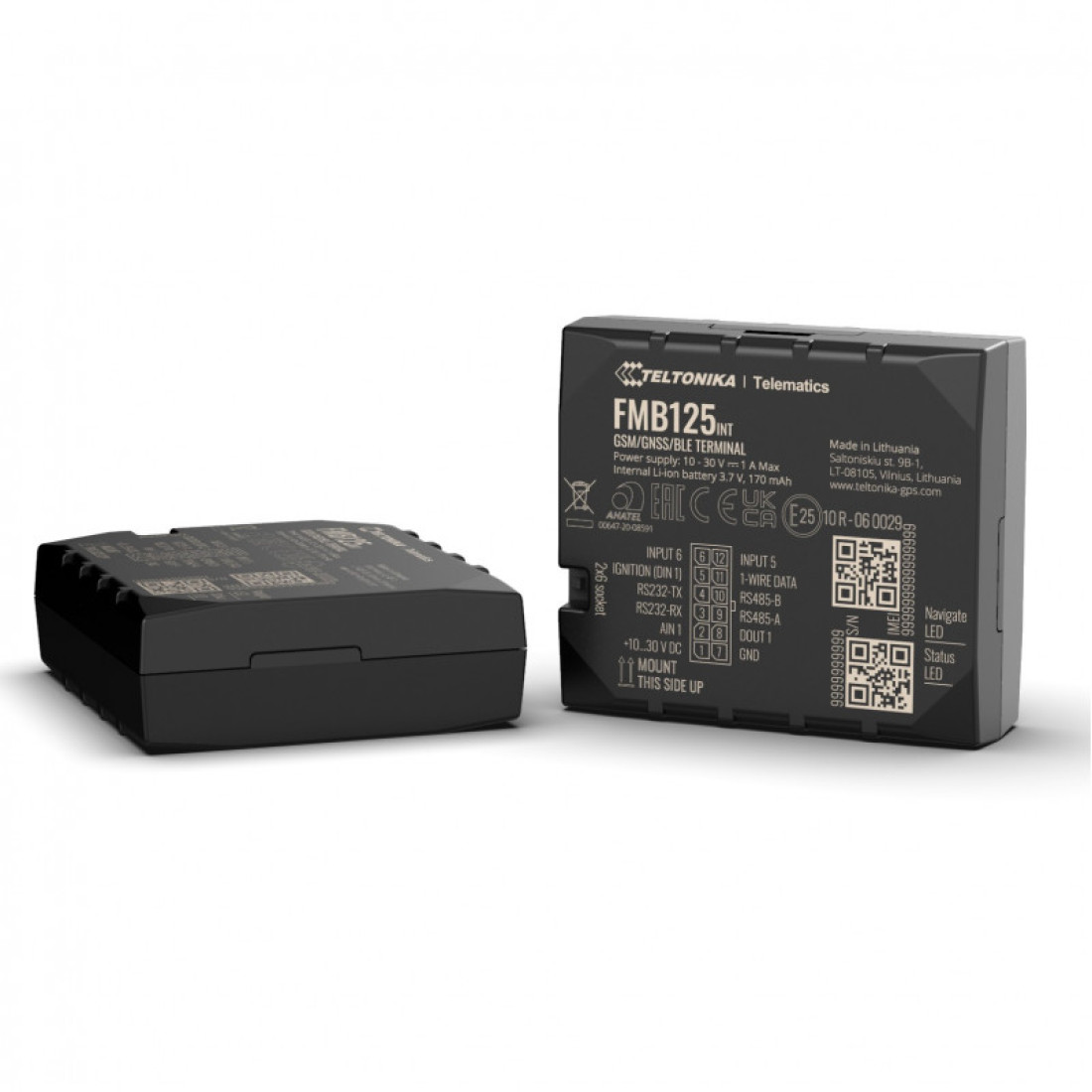

The Teltonika FMB125 Internal GPS tracker is designed for professional monitoring of transport with the connection of sensors and peripherals. Dual SIM, Bluetooth and RS232/RS485 help you monitor routes, fuel, drivers and events in eQuGPS.
How GPS monitoring works
Mobile network
Data is transmitted via the mobile network to the eQuGPS Tracking System.
02
Platform
The platform stores the received data and generates routes, events, reports, and notifications.
03
Application
The user sees information in the web account and mobile application.
04
How does the eQuGPS system work?
During an unstable GPS signal or operation of electronic warfare equipment, anomalous coordinates may appear.
eQuGPS Tracking System analyzes the received points and filters out obviously incorrect values, reducing false route jumps.
Module
- NameTeltonika TM2500
- TechnologyGSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
- Speed accuracy< 0.1m/s (within +/- 15% error)
- Receiver33 channel
- GNSS receiver sensitivity-165 dBM
- Positioning accuracy< 2.5 CEP
- Hot start< 1 s
- Warm start< 25 s
- Cold start< 35 s
Cellular communication
- TechnologiesGSM
- 2G bandsQuad-band 850/900/1800/1900 MHz
- Data transferGPRS Multi-Slot Class 12 (up to 240 kbps),
- Data supportSMS (text/data)
Power
- Backup battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
- Energy consumptionAt 12V < 6mA Ultra Deep Sleep At 12V < 6.5mA Deep Sleep At 12V < 7mA Online Deep Sleep At 12V < 12mA GPS Sleep At 12V < 38 mA Nominal with no load
- Input voltage range10 - 30 V DC with overvoltage protection
BLUETOOTH® technology
- Specification4.0 + LE
- Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner,Universal Bluetooth® LE sensors support Ia xtd2 wGct, 2dS d2 wnd4h
Physical characteristics
- Dimensions65 x 56.6 x 20.6 mm (L x W x H)
- Weight52 g
Interface
- 1-Wire1
- Analog Inputs1
- CAN adapter inputs1
- Cellular antennaInternal GSM High Gain
- Digital inputs1
- Digital outputs1
- GNSS antennaExternal (SMA connector)/internal (optional)
- LED indication2 status LED lights
- Memory128MB internal flash memory
- RS2321
- RS4851
- SIMDual SIM
- USB2.0 Micro-USB
Operating environment
- Battery charge temperature0 °C to +45 °C
- Battery discharge temperature-20 °C to +60 °C
- Battery storage temperature-20 °C to +45 °C for 1 month
- Ingress Protection RatingIP41
- Operating humidity5% to 95% non-condensing
- Operating temperature (without battery)-40 °C to +85 °C
Features
- Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile application (Configuration)
- Fuel monitoringLLS (Analog), RS232/485 Fuel sensor, LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
- GPRS commandsConfiguration, DOUT control, Debug
- Ignition ON detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
- ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
- SensorsAccelerometer
- Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
- SMSConfiguration, Events, DOUT control, Debug
- Time SynchronizationGNSS, NITZ, NTP
Certification and confirmation
- RegulatoryCE/RED, E-Mark, EAC, RoHS, REACH, Anatel (internal)
