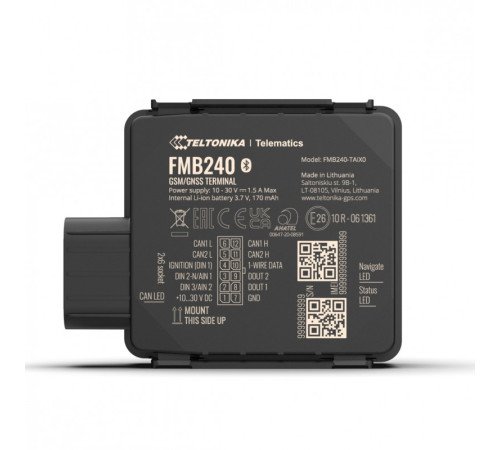

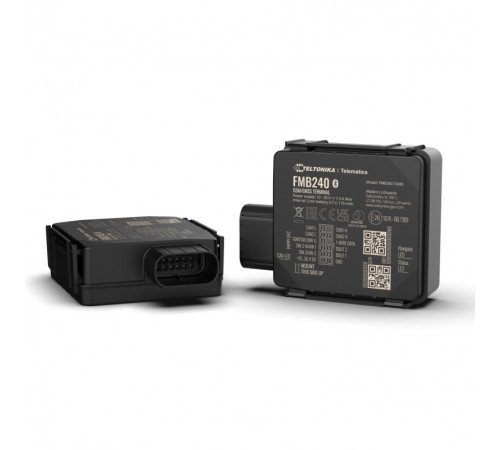

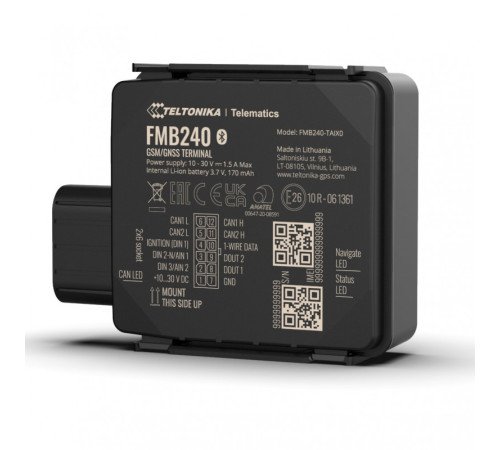

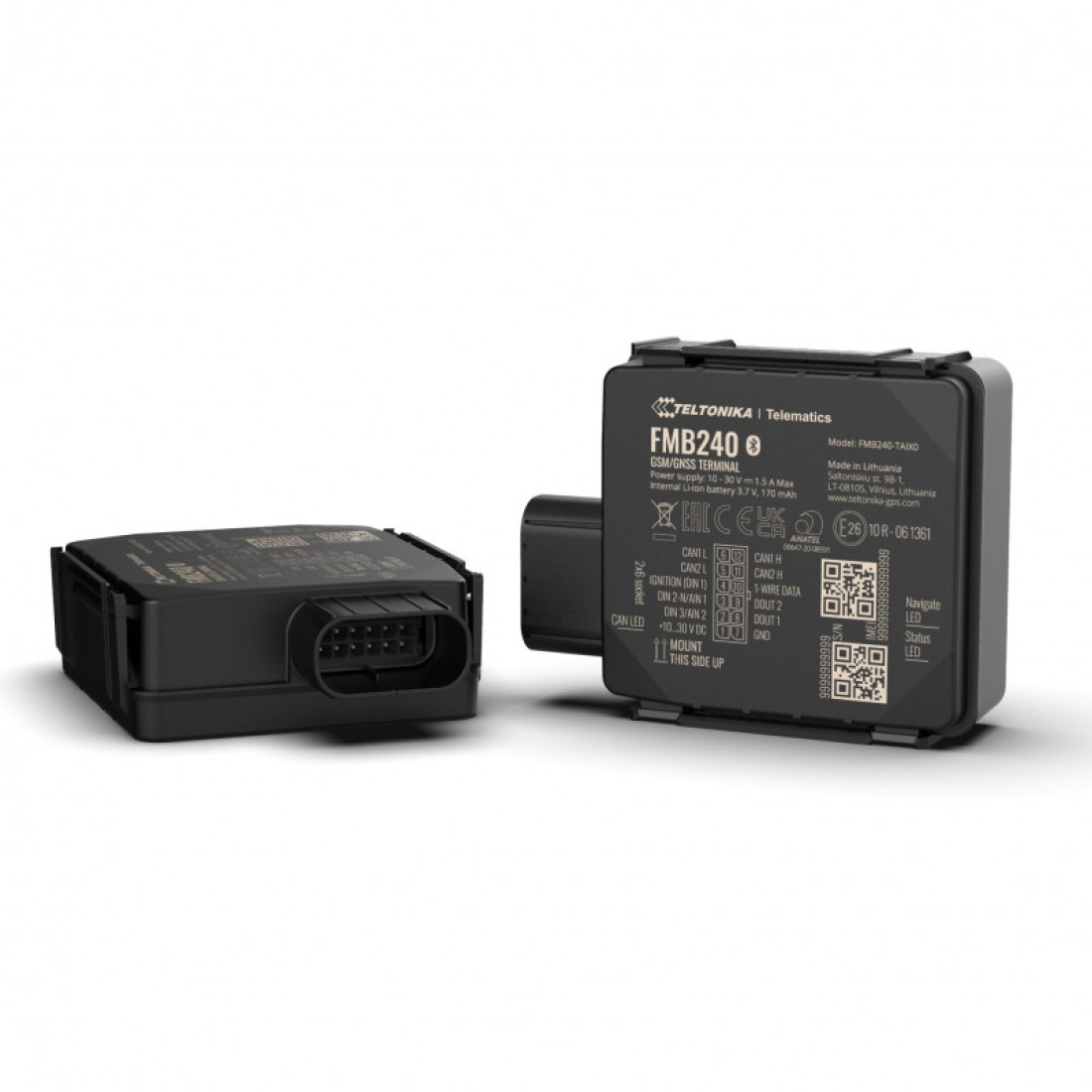

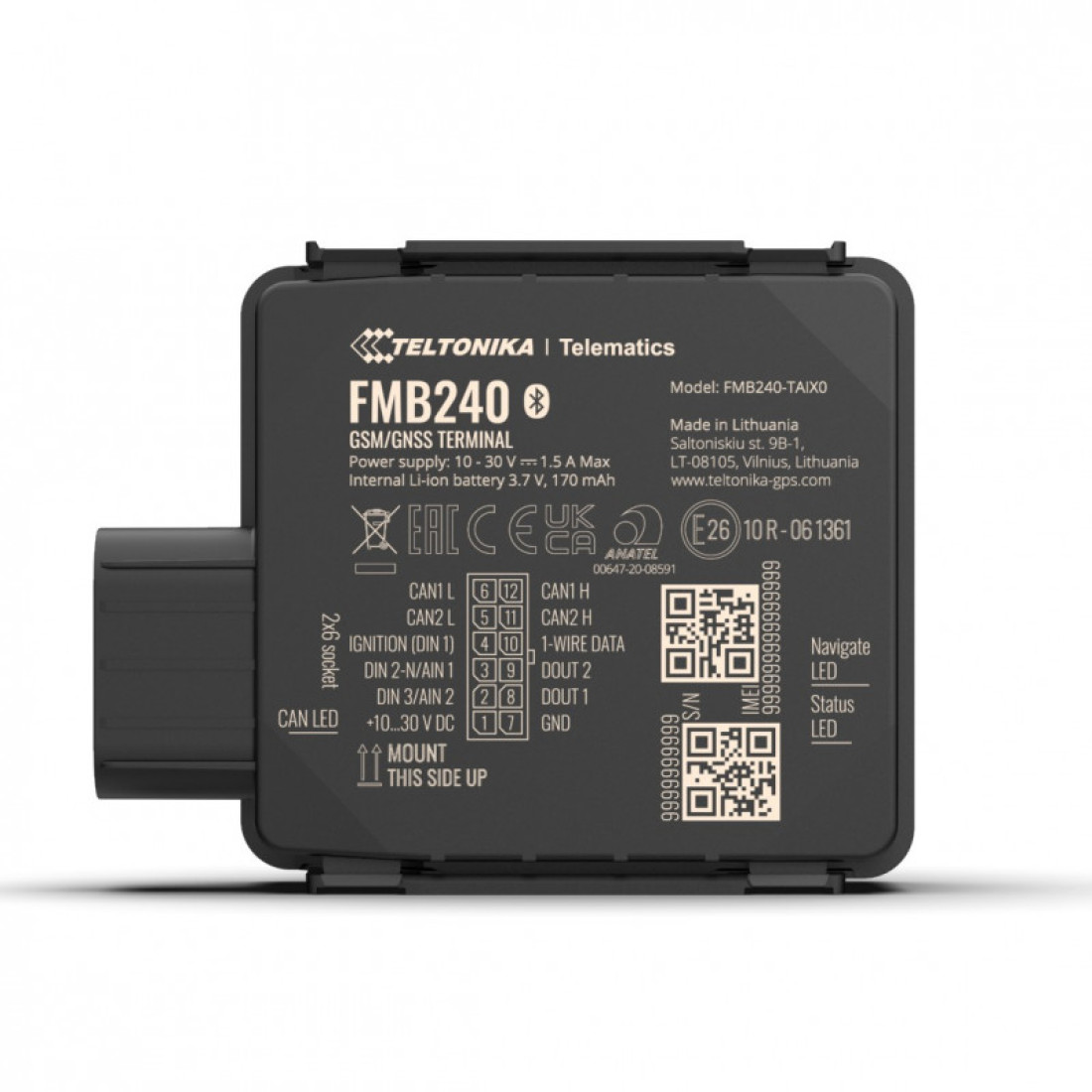

GPS tracker Teltonika FMB240 ALL-CAN 300 with CAN data

Technical specifications

• Interface
  Digital Inputs: 3
• Digital Outputs
  2
• Negative inputs
  1 (digital input 2)
• Analog Inputs
  2
• Pulse inputs
  2 (digital input 1, digital input 2)
• 1-Wire
  1
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• USB
  2.0 Micro-USB
• CAN interfaces
  2
• LED indication
  3 status LEDs
• SIM
  Micro-SIM or eSIM
• Memory
  Internal Flash Memory 128MB
• Power supply
  Input Voltage Range: 10-30 In DC with overvoltage and reverse polarity protection.
• Required power
  At 12 V < 6 mA (ultra-deep sleep); At 12 V < 8 mA (deep sleep); At 12 V < 11 mA (deep sleep); At 12 V < 20 mA (GPS sleep); At 12 V < 35 mA (nominal value without load); At 12 V < 1.5 A max. (at full load / peak)
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Dimensions
  65 x 56.6 x 20.6 mm
• Operating conditions / Housing
  Operating temperature (without battery): -40 °C to +85 °C
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP67
• Battery charge temperature
  from 0 °C to +45 °C
• Battery discharge temperature
  from -20 °C to +60 °C
• Maximum battery life
  from -20 °C to +45 °C within 1 month; from -20 °C to +35 °C for 6 months
• Bluetooth
  Specification: 4.0 + LE
• Supported Peripherals
  Temperature and Humidity Sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Support for universal BLE sensors
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Display sensitivity
  165 dBm
• Receiver
  33 channel
• Positioning accuracy
  < 2.5m CEP
• Hot Start
  < 1 s
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  GPRS Multi-Slot Class 12 (up to 240 kbit/s), GPRS Mobile Station Class B
• Network
  Technology: GSM
• 2G Bands
  Quad-band module 850/900/1800/1900 MHz
• Data Support
  SMS (text/data)
• Module
  Name: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE-RED, E-mark, REACH, RoHS, Anatel
• Features
  CAN Data: Fuel level (dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle travel distance, Frequency Engine RPM (rpm), Accelerator Pedal Position
• Sensors
  Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• SMS
  Configuration, Events, Management DOUT, Debug
• GPRS commands
  Configuration, Control DOUT, Debug
• Ignition Equipment
  Digital Input 1, Accelerometer, External Voltage Question, Engine RPM (OBDII dongle)
• Time synchronization
  GNSS, NITZ, NTP
• Scenarios
  eco-driving, speed detection, obstacle detection, GNSS fuel meter, DOUT control by call, overdrive detection idling, disconnection detection, towing detection, accident detection, automatic geofence, manual geofence, trip
