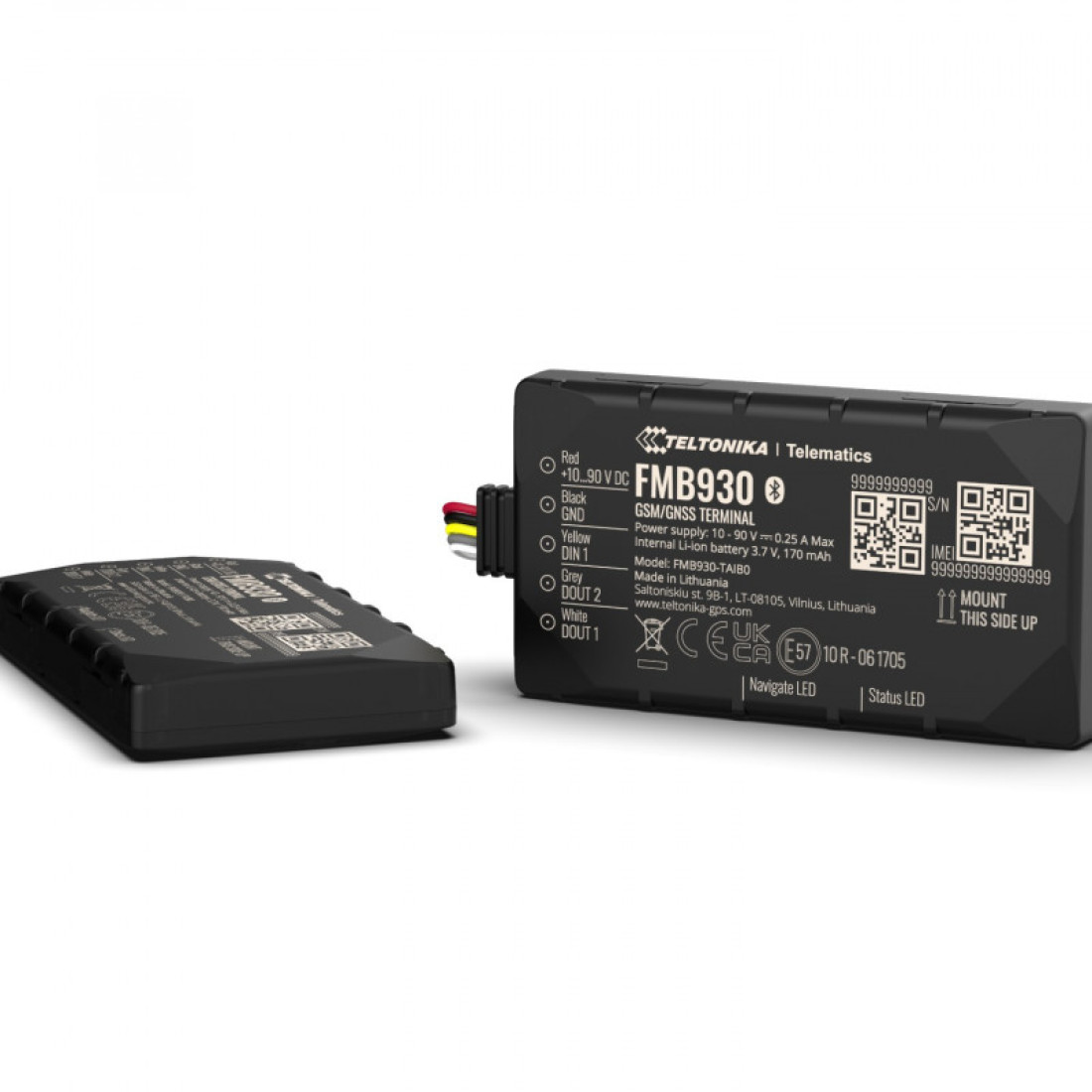

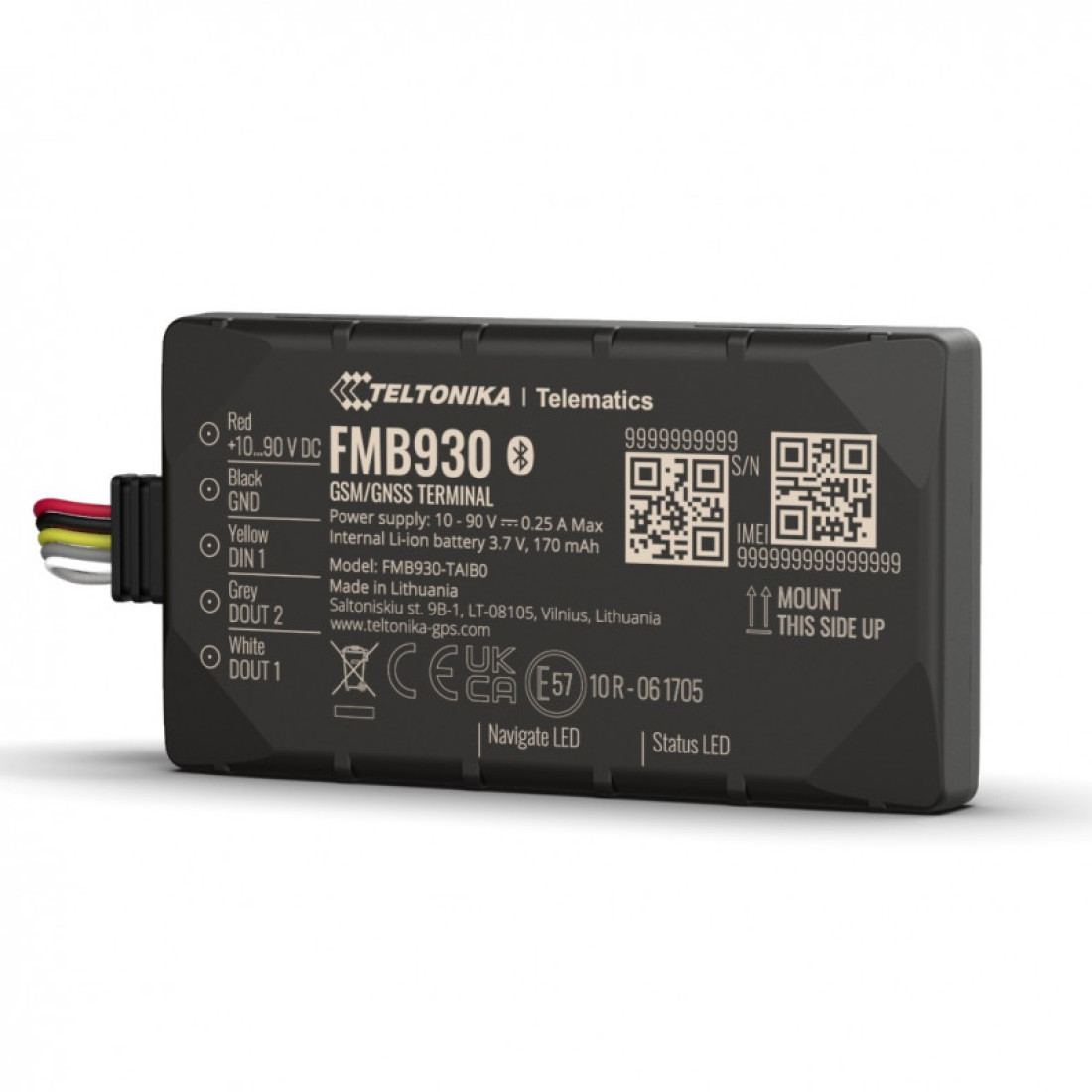

GPS tracker Teltonika FMB930 for electric transport up to 90 V

Technical specifications

• Interface
  Digital Inputs: 1
• Digital Outputs (up to 40V)
  2
• GNSS Antenna
  Internal High Gain
• Cellular Antenna
  Internal High Gain GSM
• USB
  2.0 Micro-USB
• LED indication
  2 LED Status Indicators
• Speed ​​accuracy
  < 0.1 m/s (error +/- 15 %)
• SIM
  Micro-SIM
• Memory
  Internal Flash Memory 128MB
• Weight
  54
• Height
  12
• Length
  79
• Power supply
  Input voltage range: 10-90 VDC with reverse polarity protection
• Internal backup battery
  Lithium-ion battery with a capacity of 170 mAh, 3.7 V (0.63 Wh)
• Dimensions
  79 x 43 x 12 mm
• Operating conditions / Housing
  Operating temperature (with battery): -20 to +40 °C
• Operating temperature (without battery)
  -40 to +85 °C
• Internal fuse
  3A, 125V
• Storage temperature (without battery)
  -40 °C to +85 °C
• Operating humidity
  from 5% to 95% without condensation
• Housing protection level
  IP54
• Battery charge temperature
  from 0 to +45 °С
• Battery discharge temperature
  from -20 to +60 °С
• Battery Temperature
  20 °C to +35 °C for 1 month; 20 °C to +30 °C for 6 months
• Width
  43
• Bluetooth
  Specification: 4.0+LE
• Supported Peripherals
  Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
• GNSS / Connectivity
  GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver
  33 channel
• Location Accuracy
  < 2.5 CEP
• Hot Start
  < 1 s
• Tracking Sensitivity
  165 dBm
• Warm Start
  < 25 s
• Cold Start
  < 35 s
• Data Exchange
  GPRS Multi-Slot Class 12 (up to 240 kbit/s), Class B GPRS mobile station
• Network
  Technology: GSM
• 2G Bands
  Quad-band module 850/900/1800/1900 MHz
• Data Support
  SMS (text/data)
• Module
  Name: FMB930-TAIB0: Teltonika TM2500
• Technology
  GSM/GPRS/GNSS/BLUETOOTH
• Certification
  Standards: CE/RED, E-Mark, RoHS, REACH
• Features
  Sensors: Accelerometer
• Dormant modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Power Off Sleep
• Configuration and firmware update
  FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT Mobile App (Configuration)
• SMS
  Configuration, Events, DOUT Management, Debugging
• GPRS commands
  Configuration, DOUT Management, Debugging
• Time synchronization
  GNSS, NITZ, NTP
• Ignition detection
  Digital Input 1, Accelerometer, External Supply Voltage, Engine RPM (OBDII dongle)
• Sleep mode Power off
  Allows the module to be powered down to reduce power consumption to less than 1mA in sleep mode
• Scenarios
  Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Fuel Monitoring
  OBDII dongle
