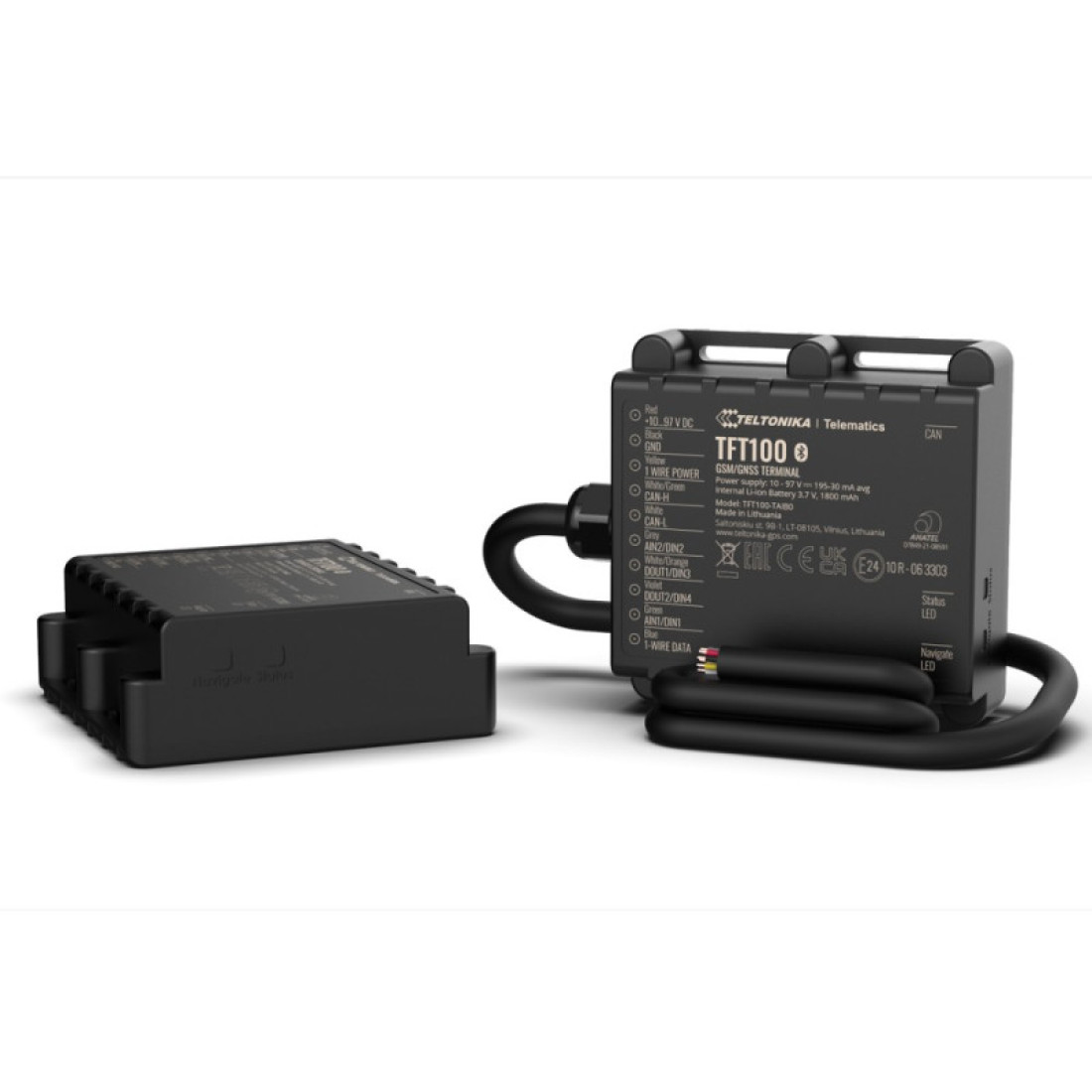

GPS tracker Teltonika TFT100 CAN for electric transport

Module

• Name
  Teltonika TM2500
• Technology
  2G(GSM/GPRS)/GNSS/BLUETOOTH® LE

GNSS

• Speed accuracy
  < 0.1 m/s (within +/- 15% error)
• Receiver
  L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
• GNSS receiver sensitivity
  33 tracking channel 99 acquisition channel
• Positioning accuracy
  -165 dBM
• Hot start
  < 1 S
• Warm start
  < 25 S
• Cold start
  < 35 s

Cellular communication

• Technologies
  GSM/GPRS
• Data transfer
  GSM (GPRS): Max. 85.6 Kbps (DL)/Max. 85.6 Kbps (UL)
• Data support
  SMS (TEXT, PDU), Network protocols (TCP,UDP,TLS,DTLS)

Power

• Backup battery
  1800 mAh Li-Ion battery 3.7 V (6.66 Wh)
• Energy consumption
  At 12V (Ultra Deep Sleep) < 8 mA At 12V (Deep Sleep) < 12 mA At 12V (Online Deep Sleep) < 12 mA At 12V (GPS Sleep) < 19.5 mA At 12V (Nominal with no load) < 34 mA At 12V (With full load/peak) < 2 A Max
• Input voltage range
  10 - 97 V DC with overvoltage protection
• Internal fuse
  3.15 A, 125 V

BLUETOOTH® technology

• Specification
  4.0 + LE
• Supported peripherals
  Temperature and Humidity sensors, Universal Bluetooth® LE sensor support

Physical characteristics

• Dimensions
  72.5 x 73 x 27.3 mm (L x W x H)
• Weight
  169 g

Interface

• 1-Wire
  Data 1
• Cellular antenna
  Internal High Gain
• GNSS antenna
  Internal High Gain
• LED indication
  2 status LED lights
• Memory
  128MB internal flash memory
• SIM
  Micro-SIM, eSIM*
• USB
  2.0 Micro-USB

Operating environment

• Battery charge temperature
  0 °C to +45 °C Battery discharge temperature -20 °C to +70 °C
• Battery discharge temperature
  -20 °C to +70 °C
• Battery storage temperature
  -10 °C to +45 °C
• Ingress Protection Rating
  IP67
• Operating humidity
  5% to 95% non-condensing
• Operating temperature (with battery)
  -20 °C to +60 °C
• Operating temperature (without battery)
  -20 °C to +75 °C
• Storage temperature (with battery)
  -20 °C to +45 °C
• Storage temperature (without battery)
  -20 °C to +75 °C

Features

• Configuration and firmware update
  FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology)
• GPRS commands
  Configuration, Debug
• Ignition ON detection
  Accelerometer, External Power Voltage, DIN1, DIN3, DIN4, CAN
• Scenarios
  Eco/Green Driving, Over Speeding, Jamming, Excessive Idling, FallDown, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip/Odometer, Immobilizer, iButton, DOUT control via call, DOUT control via Ignition, Last Known Position, Timestamp Backup, Ignition ON Counter CAN Modes Manual CAN, Manual CAN commands, Manual J1939, Bosch, Askoll, Default J1939, FLEX, Debug
• Sensors
  Accelerometer
• Sleep modes
  GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology)
• SMS
  Configuration, Events, Debug
• Time Synchronization
  GNSS, NITZ, NTP

Certification and confirmation

• Regulatory
  CE (RED), EAC, E-Mark, Anatel, UKCA, Ukrainian UCRF, RoHS, REACH, IP67
