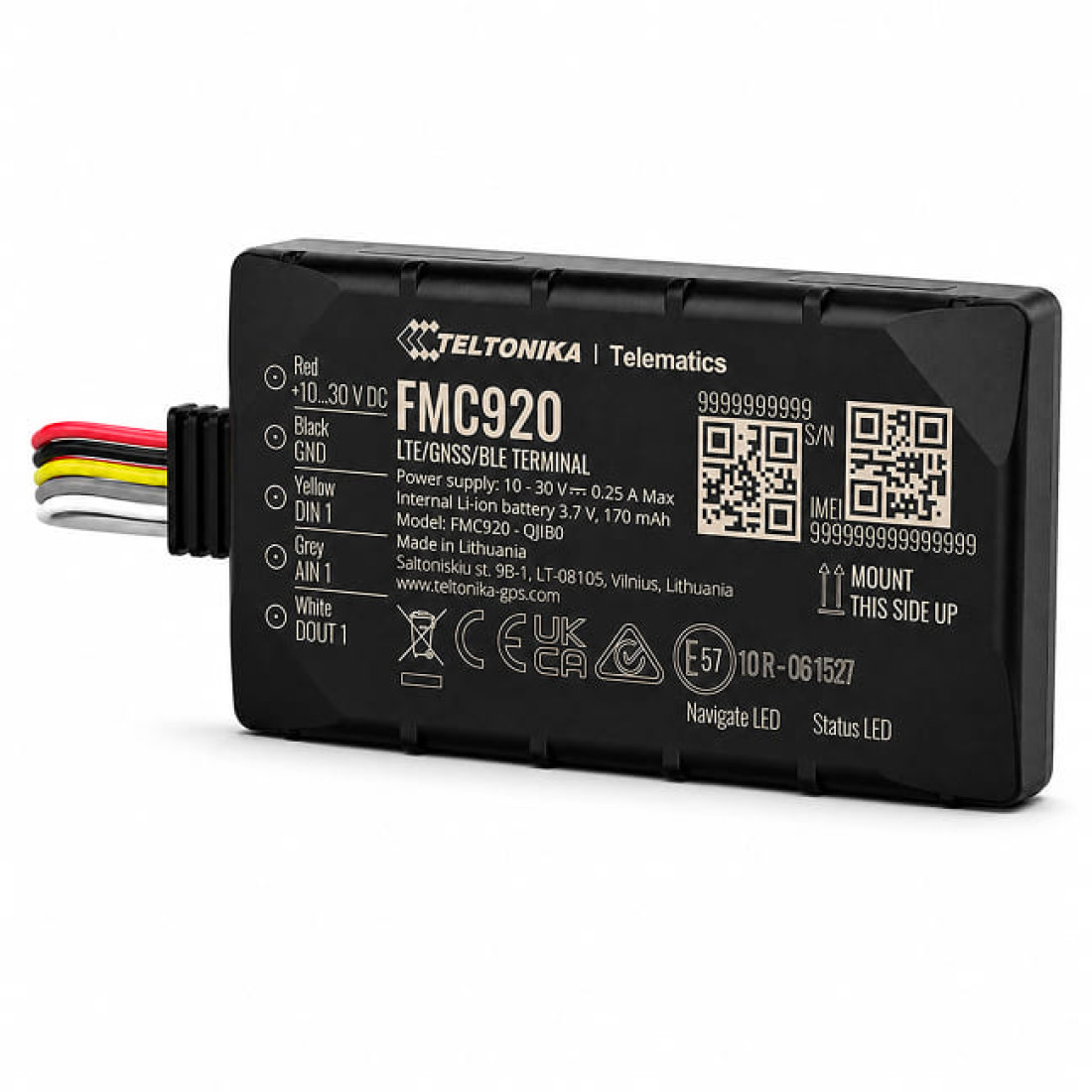

GPS Tracker Teltonika FMC920 (A/B/C)
Ignition control, engine lock, backup battery and power from the car's network.
text_total_savings 0
Payment
Account
Cash
Shipping
Courier
How GPS monitoring works
Mobile network
Data is transmitted via the mobile network to the eQuGPS Tracking System.
02
Platform
The platform stores the received data and generates routes, events, reports, and notifications.
03
Application
The user sees information in the web account and mobile application.
04
How does the eQuGPS system work?
During an unstable GPS signal or operation of electronic warfare equipment, anomalous coordinates may appear.
eQuGPS Tracking System analyzes the received points and filters out obviously incorrect values, reducing false route jumps.
Module
- NameFMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500 FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technical specifications
- Digital output1
- Tracking Sensitivity-165 dBM
GNSS
- Receiver33 channel
- Positioning accuracy< 3 m
- Hot start< 1 s
- Warm start
- Cold start
Cellular communication
- TechnologiesLTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE
- 2G bandsFMC920-QJIB0: GSM: B2/B3/B5/B8 FMC920-QKIB0: GSM: B2/B3/B5/B8
- 4G bandsFMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66
- Data transferLTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
- Data supportSMS (text/data)
Physical parameters
- Dimensions79 x 43 x 12 mm (L x W x H)
- Weight54 g
Power
- Backup battery170 mAh Li-Ion battery (0.63 Wh)
- Energy consumptionAt 12V < 2 mA (Ultra Deep Sleep) At 12V < 3 mA (Deep Sleep) At 12V < 8 mA (Online Sleep) At 12V < 12 mA (GNSS Sleep) At 12V < 28 mA (Nominal)
- Input voltage range10 - 30 V DC with overvoltage protection
BLUETOOTH® technology
- Specification4.0 + LE
- Supported peripheralsEYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner, Unversal Bluetooth® LE beacons and sensors support
Interface
- Analog Inputs1
- Cellular antennaInternal High Gain
- Digital inputs1
- GNSS antennaInternal High Gain
- LED indication2 status LED lights
- Memory128MB internal flash memory
- SIMMicro-SIM
- USB2.0 Micro-USB
Operating environment
- Battery charge temperature0 °C to +45 °C
- Battery discharge temperature-20 °C to +60 °C
- Battery storage temperature-20 °C to +35 °C for 1 month -20 °C to +30 °C for 6 months
- Ingress Protection RatingIP54
- Operating humidity5% to 95% non-condensing
- Operating temperature (with battery)-20 °C to +40 °C
- Operating temperature (without battery)from -40 °C to +85 °C
- Storage temperature (without battery)-40 °C to +85 °C
Features
- Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
- Fuel monitoringLLS (Analog), OBDII dongle
- GPRS commandsConfiguration, DOUT control, Debug
- Ignition ON detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
- ScenariosGreen Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
- SensorsAccelerometer
- Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
- SMSConfiguration, Events, DOUT control, Debug
- Time SynchronizationGPS, NITZ, NTP
Certification and confirmation
- RegulatoryFMC920-QJIB0: CE/RED, CITC, E-Mark, RCM, REACH, RoHS, TRA, SDPPI (POSTEL), SIRIM QAS, TRA FMC920-QKIB0: Anatel, REACH, RoHS
