Waterproof GPS tracker Teltonika FMB225 with RS232/RS485
Waterproof GPS tracker Teltonika FMB225 with RS232/RS485
text_total_savings 0
Payment
Account
Cash
Shipping
Courier

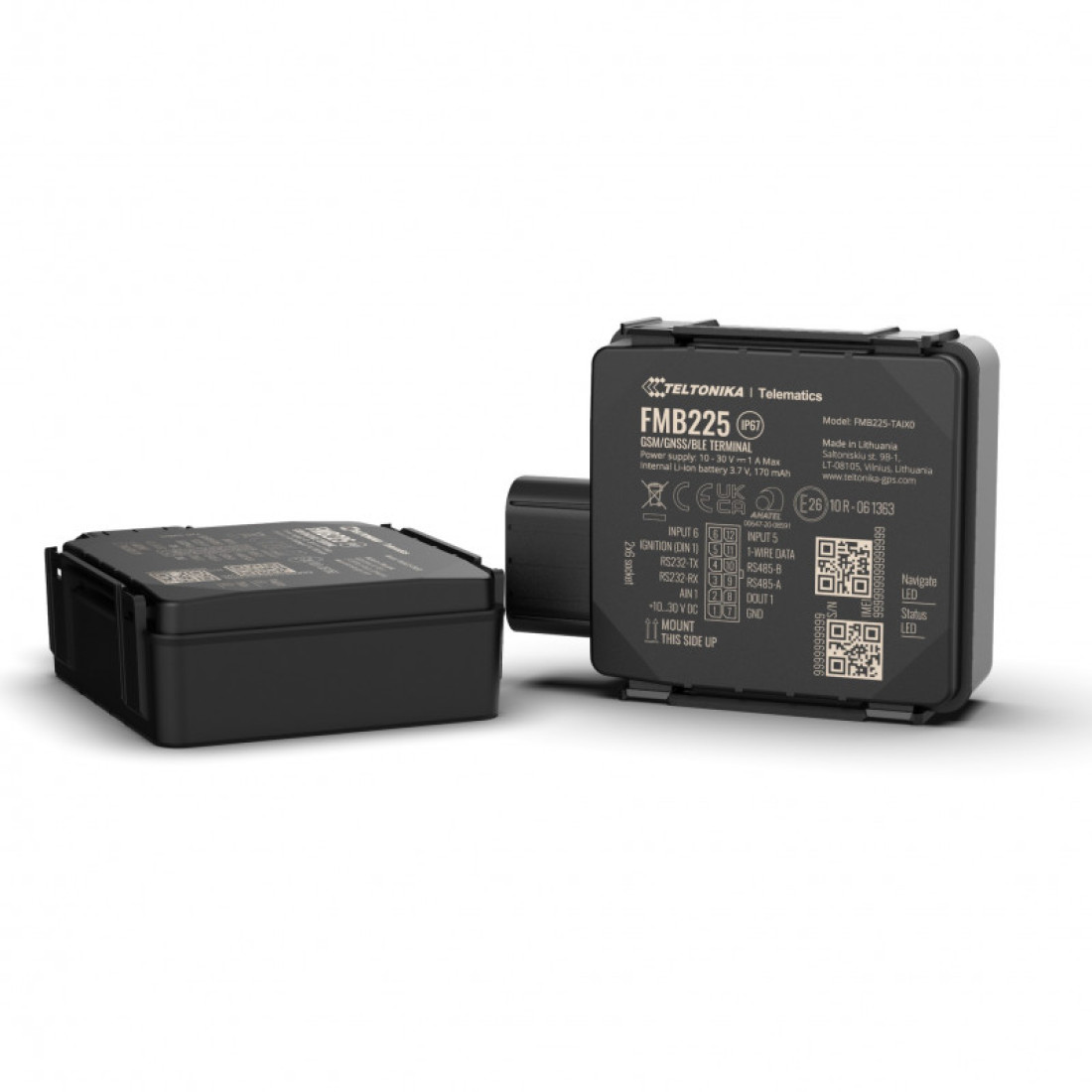

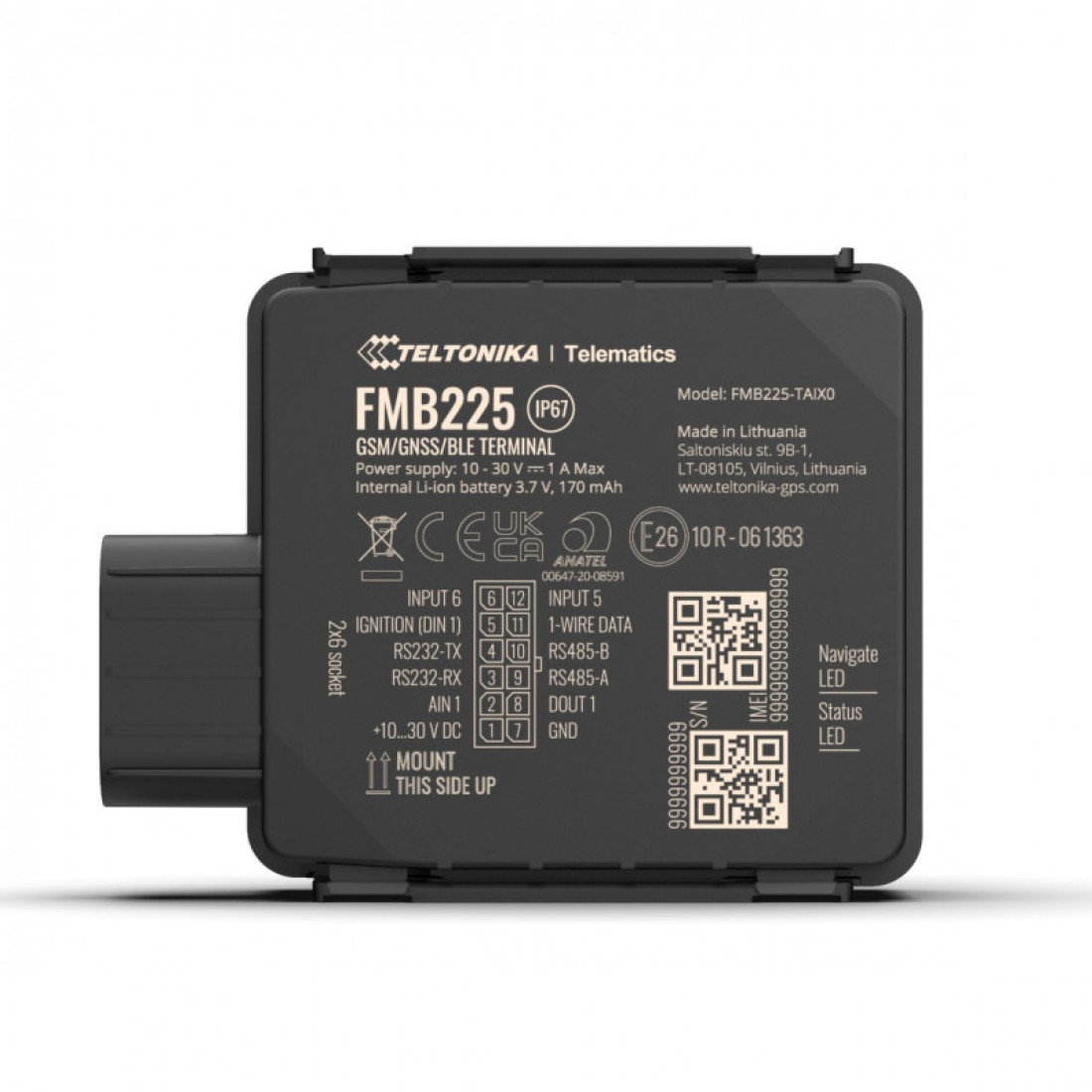

Teltonika FMB225 GPS tracker in a protected case is suitable for transport, machinery and equipment with peripheral connection. RS232/RS485, Bluetooth and external sensors extend GPS fleet monitoring and operation control in eQuGPS.
How GPS monitoring works
Mobile network
Data is transmitted via the mobile network to the eQuGPS Tracking System.
02
Platform
The platform stores the received data and generates routes, events, reports, and notifications.
03
Application
The user sees information in the web account and mobile application.
04
How does the eQuGPS system work?
During an unstable GPS signal or operation of electronic warfare equipment, anomalous coordinates may appear.
eQuGPS Tracking System analyzes the received points and filters out obviously incorrect values, reducing false route jumps.
Module
- NameTeltonika TM2500
- TechnologyGSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
- Speed accuracy< 0.1m/s (within +/- 15% error)
- Receiver33 channel
- GNSS receiver sensitivity-165 dBM
- Positioning accuracy< 2.5 CEP
- Hot start< 1 s
- Warm start< 25 s
- Cold start< 35 s
Cellular communication
- TechnologiesGSM
- 2G bandsQuad-band 850/900/1800/1900 MHz
- Data transferGPRS Multi-Slot Class 12 (up to 240 kbps),
- Data supportSMS (text/data)
Power
- Backup battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
- Energy consumptionAt 12V < 6mA (Ultra Deep Sleep) At 12V < 6.5mA (Deep Sleep) At 12V < 7mA (Online Deep Sleep) At 12V < 12mA (GPS Sleep) At 12V < 38 mA (Nominal with no load)
- Input voltage range10 - 30 V DC with overvoltage protection
BLUETOOTH® technology
- Specification4.0 + LE
- Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Bluetooth® LE sensors support
Physical characteristics
- Dimensions70,5 x 67,0 x 25,6 mm (L x W x H) 85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)
Interface
- 1-Wire1
- Analog Inputs1
- CAN adapter inputs1
- Cellular antennaInternal GSM High Gain
- Digital inputs1
- Digital outputs1
- GNSS antennaInternal GNSS High Gain
- LED indication2 status LED lights
- Memory128MB internal flash memory
- RS2321
- RS4851
- SIMDual SIM
- USB2.0 Micro-USB
Operating environment
- Battery charge temperature0 °C to +45 °C
- Battery discharge temperature-20 °C to +60 °C
- Battery storage temperature-20 °C to +45 °C for 1 month
- Ingress Protection RatingIP67
- Operating humidity5% to 95% non-condensing
- Operating temperature (without battery)-40 °C to +85 °C
Features
- Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
- Fuel monitoringLLS (Analog), RS232/485 Fuel sensor, LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
- GPRS commandsConfiguration, DOUT control, Debug
- Ignition ON detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
- ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
- SensorsAccelerometer
- Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
- SMSConfiguration, Events, DOUT control, Debug
- Time SynchronizationGNSS, NITZ, NTP
Certification and confirmation
- RegulatoryCE-RED, E-mark, Reach, RoHS, Anatel
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Similar products
Need help installing GPS equipment?
Regardless of the device model, specialists will select the optimal installation location, make the connection, and check the correct operation of the tracker with the monitoring platform. Our partners will help you set up and install GPS equipment for your car.
Don't know where to install the device? Our partners throughout Ukraine are ready to professionally install GPS equipment in your city with connection to the monitoring platform.
